HC32F176KATA-LQ64 48MHz ARM Cortex-M0+ Microcontroller MCU with 56 GPIO and 1.8V to 5.5V Voltage Range

HC32F176KATA-LQ64 48MHz ARM Cortex-M0+ Microcontroller MCU with 56 GPIO and 1.8V to 5.5V Voltage Range
HC32F176KATA-LQ64 48MHz ARM Cortex-M0+ Microcontroller MCU with 56 GPIO and 1.8V to 5.5V Voltage Range

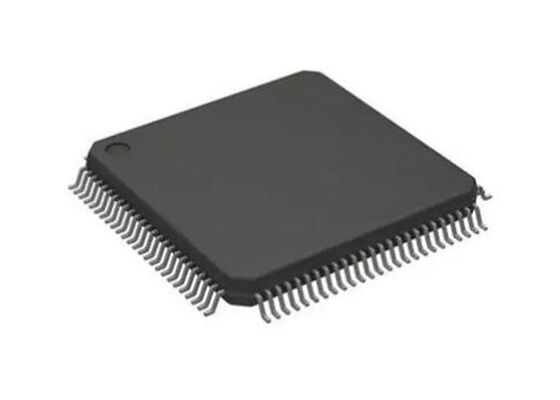

Large Image :  HC32F176KATA-LQ64 48MHz ARM Cortex-M0+ Microcontroller MCU with 56 GPIO and 1.8V to 5.5V Voltage Range

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: HC32F176KATA-LQ64
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

HC32F176KATA-LQ64 48MHz ARM Cortex-M0+ Microcontroller MCU with 56 GPIO and 1.8V to 5.5V Voltage Range

Description
Part Number: HC32F176KATA-LQ64 Operating Frequency: 48MHz
Core: ARM® Cortex®-M0+ GPIO: 56
Voltage: 1.8V To 5.5V Operating Temperature: -40°C To 85°C
Highlight:

48MHz Microcontroller MCU

,

56 GPIO ARM Cortex-M0+ MCU

,

1.8V to 5.5V 32-Bit Microcontroller

HC32F176KATA-LQ64 Microcontroller MCU
48MHz 32-Bit ARM Cortex-M0+ Microcontroller IC with wide operating voltage range and integrated security features
Product Overview
The HC32F176KATA-LQ64 is a high-performance 32-bit ARM® Cortex®-M0+ microcontroller featuring a comprehensive peripheral set including 12-bit ADC/DAC, operational amplifiers, comparators, and advanced communication interfaces. Designed for reliability and efficiency, it offers robust security modules and flexible power management.
Technical Specifications
Parameter Specification
Operating Frequency 48MHz
Core Architecture ARM® Cortex®-M0+
Flash Memory 128KB
RAM 16KB
GPIO Ports 56
Operating Voltage 1.8V to 5.5V
Operating Temperature -40°C to 85°C
Package Type LQFP64 (7mm x 7mm)
Key Features
  • 48MHz Cortex-M0+ 32-bit CPU platform with flexible power management
  • Ultra-low power consumption modes: 3μA Deep Sleep, 10μA Low-Power Mode, 30μA/MHz Sleep Mode
  • 128KB Flash memory with write protection supporting ISP, ICP, and IAP programming
  • 16KB RAM with parity check for enhanced system stability
  • 12-bit 1Msps high-speed SAR ADC with integrated follower
  • 1-channel 12-bit 500Ksps DAC with operational amplifier buffer
  • 3-channel voltage comparator with 6-bit DAC and programmable reference
  • Integrated low-voltage detector with 16-level comparison
  • Comprehensive communication interfaces: UART, SPI, I2C
  • Advanced security modules: AES and TRNG
  • Buzzer frequency generator with complementary output
  • SWD debug interface for full-featured debugging
Application Areas
  • IoT Applications and Communication Modules
  • Thermostats and Environmental Control Systems
  • Intelligent Transport and Alarm Systems
  • Smart Home Devices and Household Appliances
  • Fitness Equipment and Health Monitoring Devices
Related Components in Stock
Part Number Package
MPFS095TS-1FCVG784I 784-BGA
MPFS160T-1FCVG484I 484-FCBGA
MPFS250TLS-FCVG484I FCBGA-484
MPFS250T-FCG1152E FCBGA-1152
M2S060TS-1FG484I BGA-484
M2S150TS-1FCV484M FBGA-484
M2S150T-1FCV484M FBGA-484
M2S060TS-1FG484M BGA-484
M2S025T-1VFG400I LFBGA-400
M2S010TS-1VFG256I FPBGA-256
M2S010TS-1FGG484I BGA-484
M2S090-1FCSG325I 325-FCBGA
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample orders and small quantities. Sample cost varies according to your order or project requirements.
How to ship my order? Is it safe?
We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also use your suggested forwarder. Products are securely packaged, and we assume responsibility for any damage during shipping.
What about the lead time?
Stock parts ship within 5 working days. For non-stock items, we will confirm lead time based on your order quantity.
