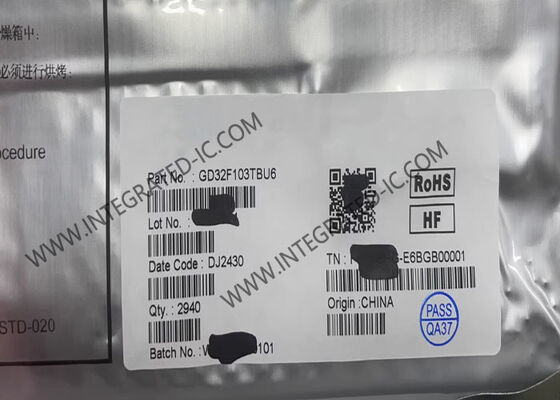

GD32F103TBU6 Microcontroller MCU
32-Bit 108MHz ARM Cortex-M3 MCU in QFN36 Package
Product Overview
The GD32F103TBU6 microcontroller introduces CAN2.0B, USB FS, I2S and SDIO support within the GD32F10x product series. Operating at up to 108MHz, it supports up to 3072KB Flash and 96KB SRAM, while integrating comprehensive digital and analog peripheral resources including USART+UART, I2C, SPI, and EXMC (External Memory Controller).
Technical Specifications
| Feature |
Specification |
| Core |
Cortex®-M3 |
| Series |
GD32F103 |
| Package |
QFN36 |
| Max Speed |
108MHz |
| Flash |
128KBytes |
| SRAM |
20KBytes |
| I/O |
up to 26 |
| GPTM (16bit) |
3 |
| Advanced TM (16bit) |
1 |
| SysTick (24bit) |
1 |
| WDG |
2 |
| RTC |
1 |
| USART+UART |
2+0 |
| I2C |
1 |
| SPI |
1 |
| CAN 2.0B |
1 |
| USB 2.0 |
1 |
| 12bit ADC Units (CHs) |
2(10) |
