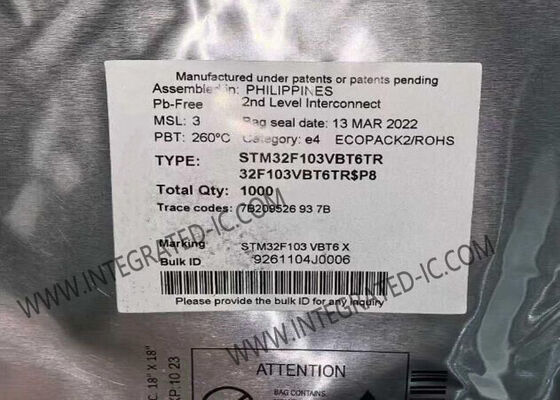

Large Image : STM32F103VBT6 Microcontroller MCU with 72MHz ARM Cortex-M3 32-Bit Core and 128KB Flash Memory

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	STM32F103VBT6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	LQFP-100
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

STM32F103VBT6 Microcontroller MCU with 72MHz ARM Cortex-M3 32-Bit Core and 128KB Flash Memory

Description

Part Number:	STM32F103VBT6	Core::	ARM Cortex M3
Program Memory Size::	128 KB	Data Bus Width::	32 Bit
ADC Resolution::	12 Bit	Maximum Clock Frequency::	72 MHz
Highlight:	72MHz STM32F103VBT6 , 128KB Flash Memory Microcontroller MCU , 32-Bit ARM Cortex-M3

STM32F103VBT6 Microcontroller MCU

High-Performance 32-Bit 72MHz ARM Cortex-M3 Microcontroller

Product Overview

The STM32F103VBT6 medium-density performance line microcontroller incorporates the high-performance Arm® Cortex®-M3 32-bit RISC core operating at 72 MHz frequency. It features high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces including up to two I2Cs and SPIs, three USARTs, USB, and CAN.

Technical Specifications

Core Processor	ARM® Cortex®-M3
Core Size	32-Bit
Speed	72MHz
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals	DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Number of I/O	80
Program Memory Size	128KB (128K x 8)
Program Memory Type	FLASH
RAM Size	20K x 8
Voltage Supply	2V ~ 3.6V
Data Converters	A/D 16x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

Arm® 32-bit Cortex®-M3 CPU core with 72 MHz maximum frequency
1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
64 or 128 Kbytes of Flash memory with 20 Kbytes of SRAM
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4 to 16 MHz crystal oscillator and internal 8 MHz factory-trimmed RC
Internal 40 kHz RC and PLL for CPU clock
32 kHz oscillator for RTC with calibration
Low-power modes: Sleep, Stop and Standby
VBAT supply for RTC and backup registers
2x 12-bit, 1 µs A/D converters (up to 16 channels)
Dual-sample and hold capability with temperature sensor
7-channel DMA controller supporting timers, ADC, SPIs, I2Cs and USARTs
Up to 80 fast I/O ports, all mappable on 16 external interrupt vectors
Debug mode with Serial wire debug (SWD) and JTAG interfaces
Seven timers including three 16-bit timers and motor control PWM timer
Up to nine communication interfaces including I2C, USART, SPI, CAN, and USB
CRC calculation unit and 96-bit unique ID
ECOPACK® compliant packages

Applications

Motor drives and application control
Medical and handheld equipment
PC and gaming peripherals
GPS platforms and industrial applications
PLCs, inverters, printers, and scanners
Alarm systems and video intercoms
HVAC systems
