MCIMX6S5EVM10AC Microcontroller MCU i.MX6S 1 Core 32-Bit 1.0GHz ARM Cortex-A9 Microprocessor

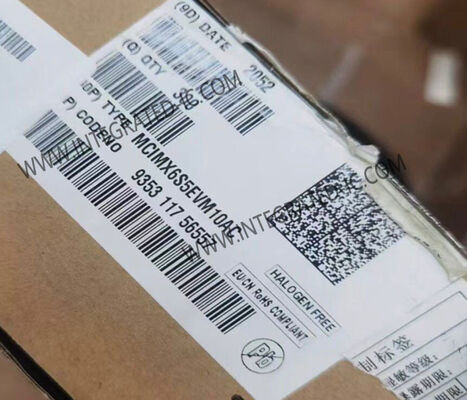

Large Image : MCIMX6S5EVM10AC Microcontroller MCU i.MX6S 1 Core 32-Bit 1.0GHz ARM Cortex-A9 Microprocessor

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MCIMX6S5EVM10AC

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	624-LFBGA
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

MCIMX6S5EVM10AC Microcontroller MCU i.MX6S 1 Core 32-Bit 1.0GHz ARM Cortex-A9 Microprocessor

Description

Part Number:	MCIMX6S5EVM10AC	Core::	ARM Cortex A9
Number Of Cores::	1 Core	Data Bus Width::	32 Bit
Maximum Clock Frequency::	1 GHz	L1 Cache Instruction Memory::	32 KB
Highlight:	1 Core Microcontroller MCU , 32-Bit i.MX6S Microprocessor , 1.0GHz ARM Cortex-A9 Processor

MCIMX6S5EVM10AC Microcontroller

i.MX6S 1 Core 32-Bit 1.0GHz ARM Cortex-A9 Microprocessor

Product Overview

The MCIMX6S5EVM10AC is an i.MX6S single-core 32-bit 1.0GHz ARM Cortex-A9 microprocessor. The i.MX 6 series combines scalable platforms with broad integration levels and power-efficient processing capabilities, particularly optimized for multimedia applications.

Technical Specifications

Specification	Details
Core Processor	ARM® Cortex®-A9
Number of Cores/Bus Width	1 Core, 32-Bit
Speed	1.0GHz
Co-Processors/DSP	Multimedia; NEON™ SIMD
RAM Controllers	LPDDR2, LVDDR3, DDR3
Graphics Acceleration	Yes
Display & Interface Controllers	Keypad, LCD
Ethernet	10/100/1000Mbps (1)
USB	USB 2.0 + PHY (4)
Voltage - I/O	1.8V, 2.5V, 2.8V, 3.3V
Operating Temperature	-20°C ~ 105°C (TJ)
Security Features	ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

Key Features

CPU Complex

1x Arm® Cortex®-A9 up to 1 GHz
512 KB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator

Multimedia

GPU 3D: Vivante GC880 - 35Mtri/s 266Mpxl/s Open GL ES 2.0
GPU 2D (Vector Graphics): Emulated on GPU 3D
GPU 2D (Composition): Vivante GC320 - 600Mpxl/s, BLIT
Video Decode: 1080p30 + D1
Video Encode: 1080p30 H.264 BP/ Dual 720p encode
Camera Interface: 1x 20-bit parallel, MIPI-CSI2 (2 lanes)

Memory

DDR: 32 bit LP-DDR3/LV-DDR3
NAND: SLC/MLC, 40-bit ECC, ONFI2.2, DDR

Connectivity

Automotive: FlexCAN, MLB
Four USB2.0: 1x HS OTG + PHY, 1x Host + PHY, 2x Host USB HSIC
Ethernet: 1 Gbps + IEEE®1588
Expansion Ports: 3x SD/MMC 4.4, 1x SDXC, 4x SPI, 5x UART, 3x I²C
MIPI-HSI, PCIe 2.0 (1 lane)

Display

2 x WXGA (1366x786)
EPDC, LVDS, Parallel, MIPI-DSI

Advanced Power Management

PMU integration
NXP® PF100 power management unit

Security

Advanced security supporting: High Assurance Boot
Cryptographic cipher engines
Random number generator
Tamper detection

Package and Temperature

21 x 21 mm 0.8 mm BGA
Consumer (0°C to +95°C), up to 1 GHz
Industrial (-40°C to +105°C), up to 800 MHz
Automotive (-40°C to +125°C), AEC-Q100, up to 800 MHz

Applications

Automotive

Digital Cluster
Heating Ventilation and Air Conditioning (HVAC)
Motorcycle Engine Control Unit (ECU) and Small Engine Control
V2X Communications

Consumer

Air Conditioning (AC)
Hearables
Robotic Appliance
Small and Medium Appliances

Industrial

3-Phase AC Induction Motor
Brushless DC Motor (BLDC) Control
eCockpit
Fleet Management
In-Home Energy Display
Industrial HMI
Inventory and Supply Chain Management
Motion Control and Robotics
Motor Drives
Permanent Magnet Synchronous Motor (PMSM)
Smart Watch and Wristband
Solar Photovoltaic (PV) Energy Generation System
