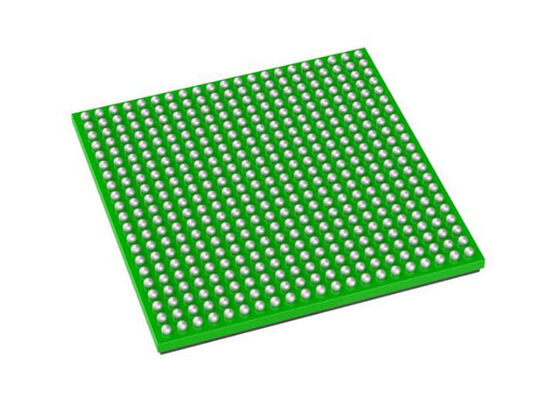

AM2432BSEFHIALXR Sitara Microcontroller MCU 32-Bit Tri-Core with 800MHz Speed 148 I/O and Industrial Communication

AM2432BSEFHIALXR Sitara Microcontroller MCU 32-Bit Tri-Core with 800MHz Speed 148 I/O and Industrial Communication
AM2432BSEFHIALXR Sitara Microcontroller MCU 32-Bit Tri-Core with 800MHz Speed 148 I/O and Industrial Communication

Large Image :  AM2432BSEFHIALXR Sitara Microcontroller MCU 32-Bit Tri-Core with 800MHz Speed 148 I/O and Industrial Communication

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AM2432BSEFHIALXR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: FCCSP-293
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AM2432BSEFHIALXR Sitara Microcontroller MCU 32-Bit Tri-Core with 800MHz Speed 148 I/O and Industrial Communication

Description
Part Number: AM2432BSEFHIALXR Program Memory Size: 2 MB
Maximum Clock Frequency: 60 MHz Number Of I/Os: 148 I/O
Interface Type: I2C, SPI, UART Operating Temperature: -40°C ~ 125°C (TJ)
Highlight:

800MHz Sitara Microcontroller

,

148 I/O Microcontroller MCU

,

Industrial Communication 32-Bit Tri-Core MCU

AM2432BSEFHIALXR Microcontroller MCU
Sitara Microcontroller IC 32-Bit Tri-Core MCU FCCSP293
Product Overview
AM2432BSEFHIALXR is a Sitara high-performance microcontroller featuring industrial communication and information security capabilities, operating at frequencies up to 800MHz.
Technical Specifications
Series Sitara™
Core Processor ARM® Cortex®-M4F, ARM® Cortex®-R5F
Core Size 32-Bit Tri-Core
Speed 400MHz, 800MHz
Connectivity CANbus, Ethernet, I2C, MMC/SDIO, QSPI, SPI, UART/USART, USB
Peripherals AES, DMA, POR, PWM, SHA, TRNG, WDT
Number of I/O 148
Program Memory Size 256KB (256K x 8)
Program Memory Type Tightly Coupled Memory (TCM)
RAM Size 256K x 8
Voltage Supply 1.71V ~ 1.89V, 3.135V ~ 3.465V
Data Converters A/D 8x10b
Oscillator Type External, Internal
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 293-FC/CSP (11x11)
Package / Case 293-VFBGA, FCCSPBGA
Key Features
  • Processor Cores: Up to 2× Dual-core Arm Cortex®-R5F MCU subsystems operating at up to 800MHz, highly integrated for real-time processing
  • Dual-core Arm Cortex®-R5F clusters support dual-core and single-core operation
  • 32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories
  • Single-core: 128KB TCM per cluster (128KB TCM per R5F core)
  • Dual-core: 128KB TCM per cluster (64KB TCM per R5F core)
  • 1× Single-core Arm Cortex®-M4F MCU at up to 400MHz with 256KB SRAM with SECDED ECC
  • Memory Subsystem: Up to 2MB of On-chip RAM (OCSRAM) with SECDED ECC
  • Can be divided into smaller banks in increments of 256KB for as many as 8 separate memory banks
  • Each memory bank can be allocated to a single core to facilitate software task partitioning
  • DDR Subsystem (DDRSS): Supports LPDDR4, DDR4 memory types with 16-bit data bus and inline ECC, supporting speeds up to 1600 MT/s
  • Simplified power sequencing requirements
  • Dual-voltage I/O Support (3.3V / 1.8V)
  • Integrated SDIO LDO for handling automatic voltage transition for SD interface
  • Integrated voltage supervisor for monitoring over-voltage and under-voltage conditions
  • Integrated power supply glitch detector for detecting fast supply transients
Applications
Programmable Logic Controller (PLC)
Motor drives
Remote I/O
Factory automation robots
Industrial & collaborative robots
Condition-monitoring gateway
Communication module
Field transmitter
Test & measurement
Industrial mobile robots
Home automation robots
General-purpose controller
