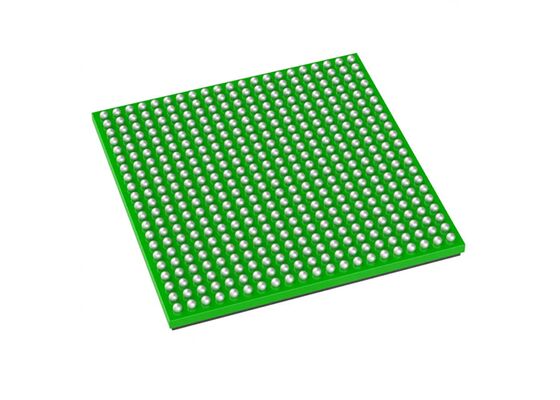

AM2432BKFGHIALXR Sitara Microcontroller MCU 800 MHz Dual-Core Industrial-Grade for Motor Drives and PLCs

AM2432BKFGHIALXR Microcontroller MCU 800 MHz Dual-Core Sitara™ Microcontroller 293-VFBGA

Product Description Of AM2432BKFGHIALXR
AM2432BKFGHIALXR is an extension of Sitara’s industrial-grade portfolio into high-performance microcontrollers. The AM243x device is built for industrial applications, such as motor drives and remote I/O modules, which require a combination of real-time communications and processing.

Specifications Of AM2432BKFGHIALXR

Features Of AM2432BKFGHIALXR
Up to 2× Dual-core Arm Cortex-R5F MCU subsystems operating at up to 800MHz, highly-integrated for real-time processing
Dual-core Arm Cortex-R5F clusters support dual-core and single-core operation
32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories
Single-core: 128KB TCM per cluster (128KB TCM per R5F core)
Dual-core: 128KB TCM per cluster (64KB TCM per R5F core)
1× Single-core Arm Cortex-M4F MCU at up to 400MHz
256KB SRAM with SECDED ECC
Up to 2MB of On-chip RAM (OCSRAM) with SECDED ECC:
Can be divided into smaller banks in increments of 256KB for as many as 8 separate memory banks
Each memory bank can be allocated to a single core to facilitate software task partitioning
DDR Subsystem (DDRSS)
Supports LPDDR4, DDR4 memory types
16-bit data bus with inline ECC
Supports speeds up to 1600 MT/s
Device Management Security Controller (DMSC-L)
Centralized SoC system controller
Manages system services including initial boot, security, and clock/reset/power management
Communication with various processing units over message manager
Simplified interface for optimizing unused peripherals
On-Chip Debug functionality through JTAG and Trace interfaces)
Data Movement Subsystem (DMSS)
Block Copy DMA (BCDMA)
Packet DMA (PKTDMA)
Secure Proxy (SEC_PROXY)
Ring Accelerator (RINGACC)
Time Sync Subsystem
Central Platform Time Sync (CPTS) module
Timer Manager (TIMERMANAGER) with 1024 timers
Time Sync and Compare event interrupt routers
2× Gigabit Industrial Communication Subsystems (PRU_ICSSG)
Optional support for Profinet IRT, Profinet RT, EtherNet/IP, EtherCAT, Time-Sensitive Networking (TSN), and other Networking Protocols
Backwards compatibility with 10/100Mb PRU-ICSS
Each PRU_ICSSG contains:
3× PRU RISC Cores per Slice (2× Slice per PRU_ICSSG)
PRU General Use core (PRU)
PRU Real-Time Unit core (PRU-RTU)
PRU Transmit core (PRU-TX)
Each PRU core supports the following features:
Instruction RAM with ECC
Broadside RAM
Multiplier with optional accumulator (MAC)
CRC16/32 hardware accelerator
Byte swap for Big/Little Endian conversion
SUM32 hardware accelerator for UDP checksum
Task Manager for preemption support
Up to 2× Ethernet ports
RGMII (10/100/1000)
MII (10/100)
Three Data RAMs with ECC
8 banks of 30 × 32-bit register scratchpad memory
Interrupt controller and task manager
2× 64-bit Industrial Ethernet Peripherals (IEPs) for time stamping and other time synchronization functions
18× Sigma-Delta Filter Module (SDFM) interfaces
Short circuit logic
Over-current logic
6× Multi-protocol position encoder interfaces
1× Enhanced Capture Module (ECAP)
16550-compatible UART
Dedicated 192MHz clock to support 12Mbps PROFIBUS
Secure boot supported
Hardware-enforced Root-of-Trust (RoT)
Support to switch RoT via backup key
Support for takeover protection, IP protection, and anti-roll back protection
Security co-processor (DMSC-L) for key and security management, with dedicated device level interconnect for security
Secure watchdog/timer/IPC
Extensive firewall support for isolation
Cryptographic acceleration supported
Session-aware cryptographic engine with ability to auto-switch key-material based on incoming data stream
Supports cryptographic cores
AES – 128-/192-/256-Bit key sizes
SHA2 – 224-/256-/384-/512-Bit key sizes
DRBG with true random number generator
PKA (Public Key Accelerator) to Assist in RSA/ECC processing for secure boot
Debugging security
Secure software controlled debug access
Security aware debugging
6× Inter-Integrated Circuit (I2C) ports
9× Universal Asynchronous Receive/Transmit (UART) modules
1× 12-bit Analog-to-Digital Converters (ADC)
Configurable sample rate up to 4MSPS
8× multiplexed analog inputs
7× Multichannel Serial Peripheral Interfaces (SPI) controllers
3× General-Purpose I/O (GPIO) modules
9× Enhanced Pulse-Width Modulator (EPWM) modules
3× Enhanced Capture (ECAP) modules
3× Enhanced Quadrature Encoder Pulse (EQEP) modules
2× Modular Controller Area Network (MCAN) modules with full CAN-FD support
2× Fast Serial Interface Transmitter (FSITX) cores
6× Fast Serial Interface Receiver (FSIRX) cores

Applications Of AM2432BKFGHIALXR
Programmable Logic Controller (PLC)
Motor drives
Remote I/O
Factory automation robots
Industrial & collaborative robots
Condition-monitoring gateway
Communication module
Field transmitter
Test & measurement
Industrial mobile robots
Home automation robots
General-purpose controller
