F28386DZWTQ Microcontroller MCU 200MHz Dual-core C28x Architecture with 1MB Flash Memory C2000™ Real-Time

F28386DZWTQ Microcontroller MCU 200MHz Dual-core C28x Architecture with 1MB Flash Memory C2000™ Real-Time
F28386DZWTQ Microcontroller MCU 200MHz Dual-core C28x Architecture with 1MB Flash Memory C2000™ Real-Time

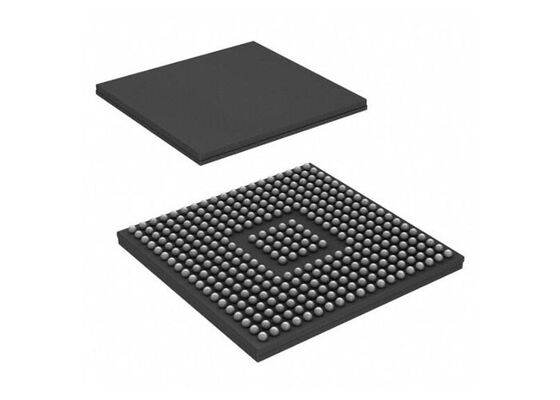

Large Image :  F28386DZWTQ Microcontroller MCU 200MHz Dual-core C28x Architecture with 1MB Flash Memory C2000™ Real-Time

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: F28386DZWTQ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: NFBGA-337
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

F28386DZWTQ Microcontroller MCU 200MHz Dual-core C28x Architecture with 1MB Flash Memory C2000™ Real-Time

Description
Part Number: F28386DZWTQ Program Memory Size: 512 KB, 1 MB
Maximum Clock Frequency: 125 MHz, 200 MHz Number Of I/Os: 169 I/O
Interface Type: CAN, I2C, SPI, USART, USB Number Of Timers/Counters: 6 X 32 Bit
Highlight:

200MHz Microcontroller MCU

,

Dual-core C28x architecture Microcontroller MCU

,

1MB Flash Memory C2000™ Real-Time Microcontroller

F28386DZWTQ Microcontroller MCU
200MHz C2000™ C28x Fixed-Point Real-Time Microcontrollers
Product Overview
F28386DZWTQ is an automotive-grade C2000™ 32-bit Real-Time Microcontroller with integrated Connectivity Manager, designed for high-performance industrial and automotive applications.
Technical Specifications
Series C2000™ C28x Fixed-Point
Core Processor C28x
Core Size 32-Bit Dual-Core
Speed 200MHz
Connectivity CANbus, Ethernet, I2C, McBSP, SCI, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 169
Program Memory Size 1MB (512K x 16)
Program Memory Type FLASH
RAM Size 108K x 16
Voltage Supply 1.14V ~ 1.26V
Data Converters A/D 24x12b, 36x16b SAR; D/A 3x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 337-NFBGA (16x16)
Package / Case 337-LFBGA
Key Features
  • Dual-core C28x architecture with two TMS320C28x 32-bit CPUs
  • 200 MHz operating frequency
  • IEEE 754 double-precision (64-bit) Floating-Point Unit (FPU)
  • Trigonometric Math Unit (TMU)
  • CRC engine and instructions (VCRC)
  • Fast Integer Division (FINTDIV)
  • 512KB (256KW) of flash on each CPU (ECC-protected)
  • 44KB (22KW) of local RAM on each CPU
  • 128KB (64KW) of global RAM shared between CPUs (parity-protected)
  • Two Control Law Accelerators (CLAs) at 200 MHz
  • Connectivity Manager with Arm® Cortex®-M4 processor at 125 MHz
  • Advanced Encryption Standard (AES) accelerator
  • Generic CRC (GCRC)
  • 32-channel Micro Direct Memory Access (µDMA) controller
  • Multiple communication interfaces including Ethernet, UART, I2C, and SSI
  • Hardware Built-in Self Test (HWBIST)
  • 1.2-V core, 3.3-V I/O design
Target Applications
  • Medium/short range radar systems
  • HVAC large commercial motor control
  • Automated sorting equipment
  • CNC control systems
  • Central and string inverters
  • Inverter & motor control applications
  • On-board chargers (OBC) & wireless chargers
  • Linear motor segment controllers
  • Servo drive control modules
  • Industrial AC-DC power supplies
  • Three phase UPS systems
