ST72F324K4B6 8-Bit ST7 Microcontroller MCU with 8MHz Speed 16 kB Flash Memory and 10-bit ADC

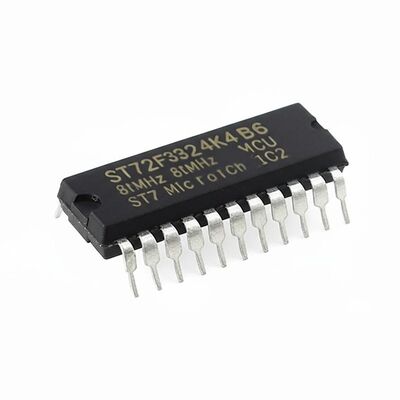

Large Image : ST72F324K4B6 8-Bit ST7 Microcontroller MCU with 8MHz Speed 16 kB Flash Memory and 10-bit ADC

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ST72F324K4B6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SDIP-32
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ST72F324K4B6 8-Bit ST7 Microcontroller MCU with 8MHz Speed 16 kB Flash Memory and 10-bit ADC

Description

Part Number:	ST72F324K4B6	Program Memory Size:	16 KB
Maximum Clock Frequency:	8 MHz	ADC Resolution:	10 Bit
Number Of I/Os:	32 I/O	Data RAM Size:	512 B
Highlight:	8MHz ST7 Microcontroller , 16 kB Flash Memory Microcontroller MCU , 10-bit ADC 8-Bit Microcontroller

ST72F324K4B6 Microcontroller MCU

The ST72F324K4B6 is an 8-bit ST7 microcontroller IC operating at 5V, featuring 8 to 32K of FLASH memory, a 10-bit ADC, four timers, and SPI and SCI interfaces. Based on a common industry-standard 8-bit core with enhanced instruction set, this microcontroller is available with FLASH program memory.

Technical Specifications

Series	ST7
Core Processor	ST7
Core Size	8-Bit
Speed	8MHz
Connectivity	SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Number of I/O	24
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH
RAM Size	512 x 8
Voltage Supply	3.8V ~ 5.5V
Data Converters	A/D 8x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	32-SDIP (0.400", 10.16mm)

Key Features

Memories

8 to 32K dual voltage High Density Flash (HD-Flash) with read-out protection capability
In-Application Programming and In-Circuit Programming for HDFlash devices
384 to 1K bytes RAM
HDFlash endurance: 100 cycles, data retention: 20 years at 55°C

Clock, Reset and Supply Management

Enhanced low voltage supervisor (LVD) for main supply with programmable reset thresholds
Auxiliary voltage detector (AVD) with interrupt capability
Clock sources: crystal/ceramic resonator oscillators, internal RC oscillator, clock security system and bypass for external clock
PLL for 2x frequency multiplication
Four Power Saving Modes: Halt, Active-Halt, Wait and Slow

Interrupt Management

Nested interrupt controller
10 interrupt vectors plus TRAP and RESET
9/6 external interrupt lines (on 4 vectors)

I/O Ports

32/24 multifunctional bidirectional I/O lines
22/17 alternate function lines
12/10 high sink outputs

Timers

Main Clock Controller with: Real time base, Beep and Clock-out capabilities
Configurable watchdog timer
16-bit Timer A with: 1 input capture, 1 output compare, external clock input, PWM and pulse generator modes
16-bit Timer B with: 2 input captures, 2 output compares, PWM and pulse generator modes

Communication Interfaces

SPI synchronous serial interface
SCI asynchronous serial interface

Analog Peripheral

10-bit ADC with up to 12 robust input ports

Instruction Set

8-bit Data Manipulation
63 Basic Instructions
17 main Addressing Modes
8 x 8 Unsigned Multiply Instruction
