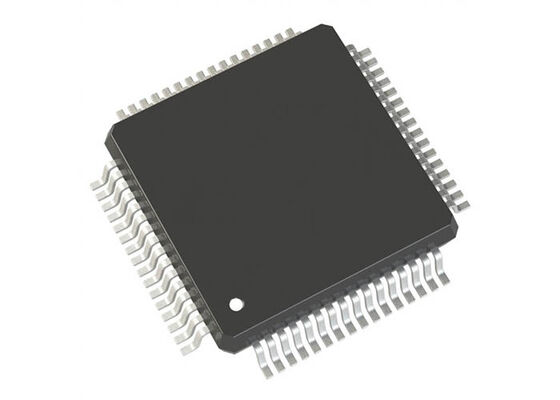

MC56F84789VLL Microcontroller MCU High Speed 32-Bit 100MHz Digital Signal Controller for Industrial Control

MC56F84789VLL Microcontroller MCU High Speed 32-Bit 100MHz Digital Signal Controller for Industrial Control
MC56F84789VLL Microcontroller MCU High Speed 32-Bit 100MHz Digital Signal Controller for Industrial Control

Large Image :  MC56F84789VLL Microcontroller MCU High Speed 32-Bit 100MHz Digital Signal Controller for Industrial Control

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MC56F84789VLL
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 100-LQFP
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MC56F84789VLL Microcontroller MCU High Speed 32-Bit 100MHz Digital Signal Controller for Industrial Control

Description
Part Number: MC56F84789VLL Core Processor: 56800EX
Number Of I/O: 86 RAM Size: 32K X 8
Operating Temperature: -40°C ~ 105°C (TA) Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
Highlight:

32-Bit Microcontroller MCU

,

100MHz Digital Signal Controller

,

High Speed Single Chip Controller

MC56F84789VLL Microcontroller MCU
High Speed 32-Bit 100MHz Single Chip Digital Signal Controllers
Product Overview
The MC56F84789VLL is based on a 32-bit DSP core, serving as a high-speed digital signal controller that delivers exceptional precision, sensing, and control capabilities. It is optimized for efficient digital power conversion and advanced motor control applications, featuring advanced high-speed and high-accuracy peripherals.
Technical Specifications
Core Processor 56800EX
Core Size 32-Bit
Speed 100MHz
Connectivity CANbus, I2C, LINbus, SCI, SPI
Peripherals Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT
Number of I/O 86
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 32K x 8
Voltage Supply 3V ~ 3.6V
Data Converters A/D 16x12b, 16x16b; D/A 1x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Key Features
  • 100 MHz/100 MIPS 32-bit DSP core
  • 64 KB to 256 KB flash memory flexibility with Direct Memory Access (DMA) controller
  • Single-cycle math computations, fractional arithmetic support and parallel moves
  • Up to 24 PWM channels with input capture
  • Hi-res PWMs with 312 pico-second resolution
  • 2x 12-bit high-speed (HS) ADCs with 3.3 Msps resolution
  • 1x 16-bit ADC with 1 Msps resolution
  • 4 analog comparators with integrated 6-bit DACs for system event identification and PWM shutdown
  • 1 12-bit DAC with auto waveform generation
  • Various communication peripherals: 3 QSCIs; 3 QSPIs; 2 I²C/SMBus; 1 FlexCAN
Applications
  • Industrial control
  • Home appliances
  • Smart sensors
  • Fire and security systems
  • Switched-mode power supply and power management
  • Uninterruptible Power Supply (UPS)
  • Solar and wind power generator
  • Power metering
  • Motor control (ACIM, BLDC, PMSM, SR, stepper)
  • Handheld power tools
  • Circuit breaker
  • Medical device/equipment
  • Instrumentation
  • Lighting
Alternative Part Numbers
Part Number Package
AGIB023R31B1I1V 3184-BGA
AGIB019R18A1E2VB 1805-BGA
AGIB019R31B1E1VB 3184-BGA
AGIB022R29A2E3V 2957-BFBGA
AGIB022R29A2I2VB 2957-BGA
AGID019R18A2I3E 1805-BGA
AGID019R31B2E2V 3184-BGA
AGID019R31B2E3E 3184-BGA
AGID019R31B2E3V 3184-BGA
AGID023R18A1I1V 1805-BBGA
AGID023R31B2I2VB 3184-BGA
AGFB023R24C2E3E 2340-BFBGA
AGFD023R25A2E3E 2581-FBGA
AGFB008R24D2E3V 2340-BFBGA
AGIB027R31B2I2V 3184-BGA
QPB9850TR7 LGA-16
QPM0106 DFN-10
QPL1818TR13 QFN-16
DW3120TR13 WLCSP-52
QPC2511SR QFN
QPF4216BTR13 LGA-24
RFSA3613TR7 QFN-16
RFSA3513TR7 QFN-16
QPA4536TR7 QFN-28
TGP2108-SM QFN-24
CMD249P5 QFN-32
QPM1002SR QFN-24
CMD273P3 QFN-12
TGS2355-SM QFN-32
CMD244K5 QFN-32
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
