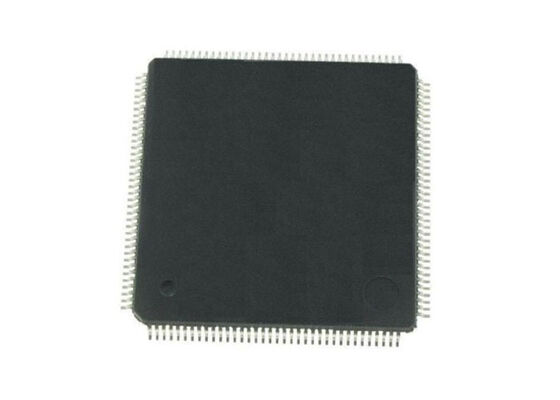

S32K394EHT1MKUS Automotive-grade 320MHz ARM Cortex M7 Microcontroller MCU in LQFP-176 Package

S32K394EHT1MKUS Automotive-grade 320MHz ARM Cortex M7 Microcontroller MCU in LQFP-176 Package
S32K394EHT1MKUS Automotive-grade 320MHz ARM Cortex M7 Microcontroller MCU in LQFP-176 Package

Large Image :  S32K394EHT1MKUS Automotive-grade 320MHz ARM Cortex M7 Microcontroller MCU in LQFP-176 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S32K394EHT1MKUS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-176
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

S32K394EHT1MKUS Automotive-grade 320MHz ARM Cortex M7 Microcontroller MCU in LQFP-176 Package

Description
Part Number: S32K394EHT1MKUS Number Of CPU Cores: Three Arm® Cortex®-M7 Cores
Core Frequency: 320MHz Program Flash Memory: 4MB
Data Flash Memory: 128KB Standby RAM: 64KB
Highlight:

320MHz Microcontroller MCU

,

Automotive-grade ARM Cortex M7

,

LQFP-176 S32K394EHT1MKUS

S32K394EHT1MKUS Microcontroller MCU
320MHz ARM Cortex M7 Microcontroller IC LQFP176
Product Overview
S32K394EHT1MKUS is an automotive-grade microcontroller within the S32K39 series, featuring three 320MHz Arm® Cortex®-M7 cores. It incorporates ASIL D functional safety, an HSE_B safety engine, and a comprehensive suite of motor control and communication peripherals. Packaged in an LQFP-176, it is suitable for automotive electrification and industrial real-time control applications.
Technical Specifications
Specification Value
Mounting Style SMD/SMT
Package / Case LQFP-176
Core ARM Cortex M7
Program Memory Size 4 MB
Data Bus Width 32 bit
ADC Resolution 12 bit
Maximum Clock Frequency 320 MHz
Data RAM Size 800 kB
Minimum Operating Temperature -40℃
Maximum Operating Temperature +125℃
Analog Supply Voltage 2.97 V to 5.5 V
DAC Resolution 8 bit
Data RAM Type RAM
Interface Type I2C, SPI, UART
Key Features
  • Cortex-M7 core running up to 320 MHz
  • Arm core based on the Armv7 architecture and ThumbR-2 ISA
  • 16 KB D-cache and 16 KB I-cache for optimizing wait state execution from memories
  • 96 KB TCM associated with each core
  • On-core MPU for dynamic task protection (16 regions)
  • CoolFlux DSP16L with:
    • A frequency of 160 MHz
    • One core and four threads
    • 32 KB Instruction RAM and 24 KB Data RAM
  • Two coprocessor cores at a frequency of 320 MHz each that help with:
    • Software running independently of the Cortex-M7 CPUs
    • 32 KB code RAM and 8 KB data RAM
    • DSP and mathematical capabilities
  • 2 x 64-channel DMAMUX per eDMA
  • 2 x 32-channel eDMAs
  • Up to 6 MB program flash memory with an ECC
  • Up to 128 KB data flash memory with an ECC
  • Up to 800 KB SRAM with an ECC
