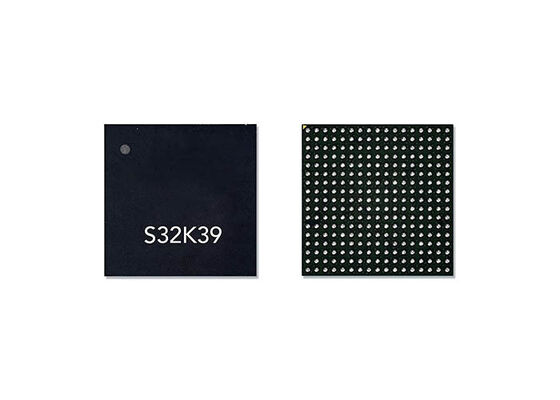

S32K396EHT1MJBS Microcontroller MCU
320MHz ARM Cortex M7 Microcontrollers for Electrification Applications
Product Overview
The S32K396EHT1MJBS is a purpose-built microcontroller specifically designed for electric vehicle (EV) applications, delivering an optimal combination of performance, integration, networking, security, and functional safety capabilities.
Key Capabilities
This microcontroller provides sufficient computing power to control up to one six-phase or two three-phase motors using over 200 kHz control loops, while simultaneously hosting AI/ML algorithms or other monitoring applications. It supports remote smart actuation applications through Time-Sensitive Networking (TSN) Ethernet for modern zonal vehicle architectures and reduces system costs with ASIL D software resolver and analog integration.
Technical Specifications
| Series | S32K396 |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-289 |
| Core | ARM Cortex M7 |
| Program Memory Size | 6 MB |
| Data Bus Width | 32 bit |
| ADC Resolution | 12 bit |
| Maximum Clock Frequency | 320 MHz |
| Number of I/Os | 237 I/O |
| Data RAM Size | 800 kB |
| Supply Voltage - Min | 2.97 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| DAC Resolution | 8 bit |
| Data RAM Type | RAM |
| Interface Type | I2C, SPI, UART |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 69 Channel |
| Operating Supply Voltage | 3.3 V, 5 V |
Advanced Features
- Compute: Up to three Arm® Cortex®-M7 cores running at 320 MHz, one lockstep core pair, two split-lock configurable cores, two motor control coprocessors running at 320 MHz (S32K39-36 only), programmable CoolFlux™ DSP running at 160 MHz
- Memory: 4 MB or 6 MB embedded flash memory with ECC, up to 800kB SRAM
- Smart Timers: Two eFlexPWM (12 ch) with NanoEdge (8 ch), one eMIOS (24 ch), two logic control units (LCU)
- Analog-to-Digital: Seven SAR-ADC (up to 69 external analog inputs), four Sigma-Delta ADC, two Sine Wave Generator (SWG), two analog comparators
Target Applications
- Automotive Systems
- Battery Management System (BMS)
- Electric Vehicle (EV) Traction Inverter
- Hybrid Electric Vehicle (HEV) Applications
