S32K396EHT1MKUS Microcontroller MCU with 320 MHz ARM Cortex M7, 144 I/O, and 800 kB RAM in LQFP-176 Package

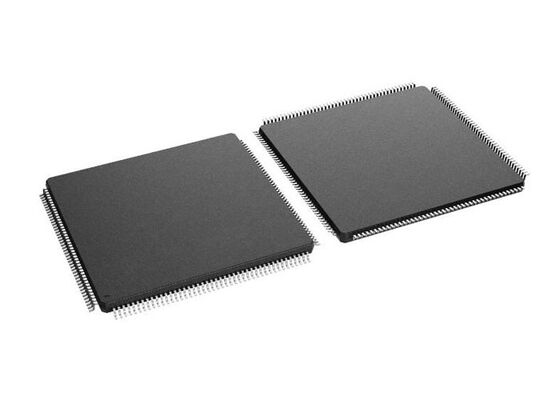

Large Image : S32K396EHT1MKUS Microcontroller MCU with 320 MHz ARM Cortex M7, 144 I/O, and 800 kB RAM in LQFP-176 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	S32K396EHT1MKUS

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	LQFP-176
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

S32K396EHT1MKUS Microcontroller MCU with 320 MHz ARM Cortex M7, 144 I/O, and 800 kB RAM in LQFP-176 Package

Description

Part Number:	S32K396EHT1MKUS	Core::	ARM Cortex M7
Maximum Clock Frequency::	320 MHz	Number Of I/Os::	144 I/O
Data RAM Size::	800 KB	DAC Resolution::	8 Bit
Highlight:	320 MHz Microcontroller MCU , 144 I/O ARM Cortex M7 , 800 kB RAM S32K396EHT1MKUS

S32K396EHT1MKUS Microcontroller MCU

320MHz ARM Cortex M7 Microcontroller in LQFP-176 Package

Product Overview

The S32K396EHT1MKUS is a purpose-built microcontroller specifically designed for electric vehicle (EV) applications, delivering an optimal combination of performance, integration, networking, security, and functional safety capabilities.

Key Capabilities

This microcontroller provides sufficient computing power to support up to one six-phase or two three-phase motors controlled by over 200 kHz control loops, while simultaneously hosting AI/ML algorithms or other monitoring applications. It enables remote smart actuation using Time-Sensitive Networking (TSN) Ethernet for modern zonal vehicle architectures and reduces system costs through ASIL D software resolver and analog integration.

Technical Specifications

Core	ARM Cortex M7
Program Memory Size	6 MB
Data Bus Width	32 bit
ADC Resolution	12 bit
Maximum Clock Frequency	320 MHz
Number of I/Os	144 I/O
Data RAM Size	800 kB
Supply Voltage Range	2.97 V to 5.5 V
Operating Temperature	-40°C to +125°C

Key Features

Cortex-M7 core running up to 320 MHz
Arm core based on Armv7 architecture with Thumb-2 ISA
16 KB D-cache and 16 KB I-cache for optimized wait state execution
96 KB TCM associated with each core
On-core MPU for dynamic task protection (16 regions)
IEEE 754-compliant single-precision floating-point unit (SPFPU)
Harvard bus architecture with dedicated instruction and data paths
6-stage pipeline with branch speculation
XRDC integrated with crossbar switch for memory and peripheral protection
DSP and SIMD extension capabilities
I/O protection (VIRT_WRAPPER)
Embedded trace macrocell (ETM) supporting instruction trace
Arm third-party ecosystem support for reduced development time and cost

Target Applications

Automotive Systems
Battery Management Systems (BMS)
Electric Vehicle (EV) Traction Inverters
Hybrid Electric Vehicle (HEV) Applications
