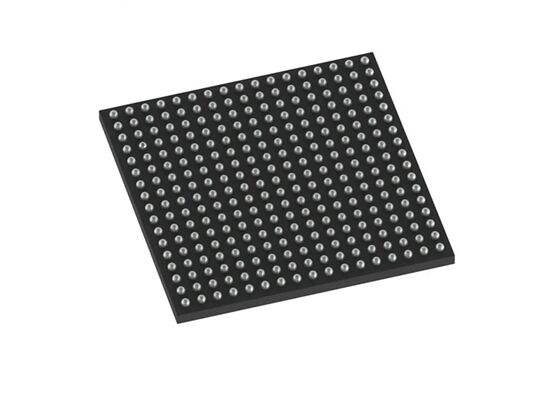

S32K396NHT1MJBS Microcontroller MCU
32-Bit 320MHz ARM Cortex-M7 S32K396 Microcontroller
Product Overview
The S32K396NHT1MJBS is a purpose-built microcontroller addressing the evolving needs of electric vehicles (EVs) with an exceptional combination of performance, integration, networking, security, and functional safety capabilities.
This microcontroller delivers sufficient computing power to support up to one six-phase or two three-phase motors controlled by over 200 kHz control loops, while simultaneously hosting AI/ML algorithms or other monitoring applications. It enables remote smart actuation applications using Time-Sensitive Networking (TSN) Ethernet for modern zonal vehicle architectures and reduces system costs through ASIL D software resolver and analog integration.
Technical Specifications
| Specification |
Details |
| Core Processor |
ARM® Cortex®-M7 |
| Core Size |
32-Bit Quad-Core |
| Speed |
320MHz |
| Connectivity |
CANbus, I2C, QSPI, SPI, UART/USART |
| Peripherals |
DMA, I2S, WDT |
| Number of I/O |
209 |
| Program Memory Size |
6MB (6M x 8) |
| Program Memory Type |
FLASH |
| EEPROM Size |
128K x 8 |
| RAM Size |
800K x 8 |
| Voltage Supply |
2.7V ~ 5.5V |
| Data Converters |
A/D 69x12b SAR, Sigma-Delta |
| Oscillator Type |
External |
| Operating Temperature |
-40°C ~ 125°C (TA) |
| Grade |
Automotive |
Key Features
- Up to three Arm® Cortex®-M7 cores running at 320 MHz
- One lockstep core pair
- Two split-lock configurable cores
- Two motor control coprocessors running at 320 MHz (S32K39-36 only)
- Programmable CoolFlux™ DSP running at 160 MHz
- One Ethernet interface with Time-Sensitive Networking (TSN) support (10/100 Mbps)
- One Zipwire high-speed interface for memory sharing between MCUs
- Six CAN / CAN FD
- Four LIN / UART
- Two I²C
- Eight channel FlexIO emulating UART, I²C, SPI, I2S, SENT, PWM
- Six SPI
- One microsecond channel (MSC)
- ISO 26262 up to ASIL D
- In-context safety concept for inverter applications
- Hardware fault collection unit
- Safety documentation and SafeAssure community support
Target Applications
- Automotive Systems
- Battery Management System (BMS)
- Electric Vehicle (EV) Traction Inverter
- Hybrid Electric Vehicle (HEV) Applications
Compatible Part Numbers
| Part Number |
Package |
| 5AGZME7K3F40C4G | 1517-BBGA |
| 5AGZME3H2F35I3LG | 1152-BBGA |
| 5AGZME5K3F40I4G | 1517-BBGA |
| 5AGZME5K2F40C3G | 1517-BBGA |
| 1SG085HN3F43E1VG | 1760-BBGA |
| 1ST040EH1F35I2LG | 1152-BBGA |
| 1SG110HN3F43I3VG | 1760-BBGA |
| 1SG110HN3F43E2VG | 1760-BBGA |
| 1SG110HN3F43E2VGS1 | 1760-BBGA |
| 1SD110PJ3F43E3VG | 1760-BBGA |
| 1SG085HN3F43I2VG | 1760-BBGA |
| 1SG085HN2F43E2VG | 1760-BBGA |
| 5AGTFD7K3F40I3G | 1517-BBGA |
| 1SG085HN3F43E2LG | 1760-BBGA |
| 1SG166HN3F43E3VG | 1760-BBGA |
| 1SG165HN3F43E3VG | 1760-BBGA |
| 1SG085HN3F43E3XG | 1760-BBGA |
| 5AGZME7K3F40I4G | 1517-BBGA |
| 5AGZME7K2F40C3G | 1517-BBGA |
| 5AGZME5K2F40I3LG | 1152-BBGA |
| 1SG110HN3F43E1VG | 1760-BBGA |
| 1SG085HN3F43I1VG | 1760-BBGA |
| 1SG085HN1F43E2VG | 1760-BBGA |
| 1SG085HN2F43E1VG | 1760-BBGA |
| 1SG110HN3F43I2VG | 1760-BBGA |
| 1SG110HN2F43E2VG | 1760-BBGA |
| 1SD110PJ3F43I3VG | 1760-BBGA |
| 1SG085HN2F43I2VG | 1760-BBGA |
| 5AGZME7H2F35I3LG | 1152-BBGA |
| 1SG110HN3F43E2LG | 1760-BBGA |
