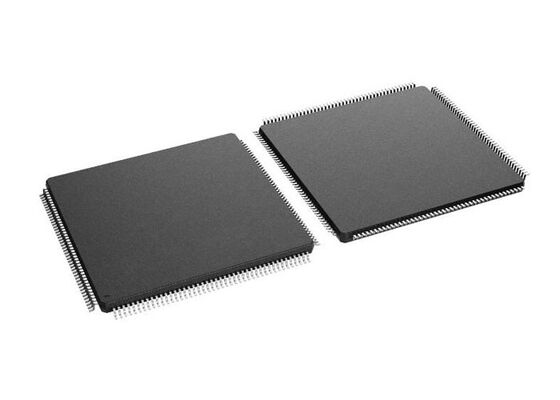

S32K396NHT1MKUS 32-Bit Quad-Core ARM Cortex-M7 Microcontroller MCU 320MHz Automotive Grade in 176-LQFP Package

S32K396NHT1MKUS 32-Bit Quad-Core ARM Cortex-M7 Microcontroller MCU 320MHz Automotive Grade in 176-LQFP Package
S32K396NHT1MKUS 32-Bit Quad-Core ARM Cortex-M7 Microcontroller MCU 320MHz Automotive Grade in 176-LQFP Package

Large Image :  S32K396NHT1MKUS 32-Bit Quad-Core ARM Cortex-M7 Microcontroller MCU 320MHz Automotive Grade in 176-LQFP Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S32K396NHT1MKUS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 176-LQFP
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

S32K396NHT1MKUS 32-Bit Quad-Core ARM Cortex-M7 Microcontroller MCU 320MHz Automotive Grade in 176-LQFP Package

Description
Part Number: S32K396NHT1MKUS Core:: ARM Cortex M7
Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V Operating Temperature: -40°C ~ 125°C (TA)
Speed: 320MHz Peripherals: DMA, I2S, WDT
Highlight:

320MHz ARM Cortex-M7 Microcontroller

,

Automotive Grade Microcontroller MCU

,

176-LQFP Package 32-Bit Quad-Core Microcontroller

S32K396NHT1MKUS Microcontroller MCU
32-Bit Quad-Core 320MHz ARM Cortex-M7 Microcontroller in 176-LQFP Package
Product Overview
The S32K396NHT1MKUS is a purpose-built microcontroller addressing the new electric vehicle (EV) needs with a compelling combination of performance, integration, networking, security and functional safety capabilities.
Technical Specifications
Parameter Specification
Core Processor ARM® Cortex®-M7
Core Size 32-Bit Quad-Core
Speed 320MHz
Connectivity CANbus, I2C, QSPI, SPI, UART/USART
Peripherals DMA, I2S, WDT
Program Memory Size 6MB (6M x 8)
Program Memory Type FLASH
EEPROM Size 128K x 8
RAM Size 800K x 8
Voltage Supply 2.7V ~ 5.5V
Data Converters A/D 12b SAR, Sigma-Delta
Oscillator Type External
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Key Features
  • Up to three Arm® Cortex®-M7 cores running at 320 MHz
  • One lockstep core pair
  • Two split-lock configurable cores
  • Two motor control coprocessors running at 320 MHz (S32K39-36 only)
  • Programmable CoolFlux™ DSP running at 160 MHz
  • Real-Time Drivers - free of charge (AUTOSAR® and non-AUTOSAR), ASIL D compliant
  • Production-intent ASIL D software resolver and checker
  • SAR ADC firmware for DSP
  • Security firmware - NXP provided, field upgradeable
  • S32 Safety Software Framework (SAF) and Structural Core Self-Test (SCST) library
  • Safety Peripheral Drivers
  • S32 Design Studio IDE - Eclipse, GCC and debugger, 3rd party support
  • Model-Based Design Toolbox (MBDT) for MATLAB®
  • Inter-Platform Communication Framework (IPCF)
Target Applications
  • Automotive Systems
  • Battery Management System (BMS)
  • Electric Vehicle (EV) Traction Inverter
  • Hybrid Electric Vehicle (HEV) Applications
Alternative Part Numbers
Part Number Package
1SG085HN3F43I2LG 1760-BBGA
1SG085HN2F43E2LG 1760-BBGA
1ST085EN3F43E3VG 1760-BBGA
1ST085EN3F43E3VGAS 1760-BBGA
1SG166HN3F43I3VG FBGA-1760
1SG165HN3F43I3VG FBGA-1760
1SG165HN3F43I3VGAS FBGA-1760
1SG166HN3F43E2VG FBGA-1760
1SG165HN3F43E2VG FBGA-1760
5AGZME7K2F40I3LG FBGA-1760
1SG211HN3F43E3VG FBGA-1760
1SG210HN3F43E3VG FBGA-1760
EP3CLS200F780I7 FBGA-780
1SG110HN1F43E2VG FBGA-1760
1SG110HN2F43E1VG FBGA-1760
1SG110HN3F43I1VG FBGA-1760
1SG085HN2F43I1VG FBGA-1760
BG950SGL00AA-8N-SGNSA LGA
EG120KEABA-M22-SGADA LGA
RG255CGL00AA-4M2-MN0AA MODULE
FCM360KAAMD-0P-04 MODULE
SG560DCNPA-U61-UGADA MODULE
JODY-W263-10B LGA
BG95-M3 MODULE
LEA-F9T-20B MODULE
NRF9160-SIBA-R7 LGA
LARA-L6004-00B LGA
LARA-L6804D-01B 100-LGA
LARA-L6004-01B LGA
NRF9161-LACA-R LGA
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
