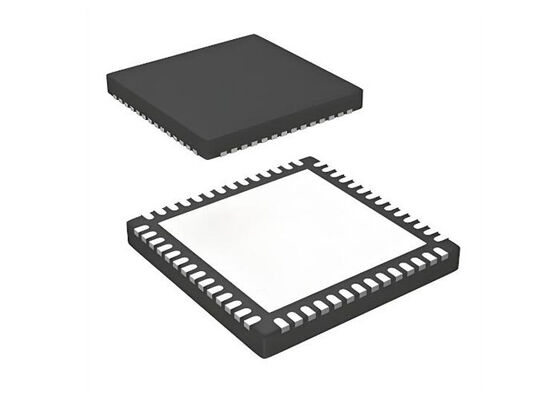

STM32V873RI Microcontroller MCU 800MHz Arm Cortex-M85 High-Performance Microcontroller
The STM32V873RI is a high-performance microcontroller from the STM32V8 series, manufactured using an advanced 18nm FD-SOI process. Featuring an Arm Cortex-M85 core operating at up to 800MHz, this MCU is specifically engineered for demanding applications in industrial control, aerospace, and edge AI systems.
Key Specifications
Processor Core: Arm Cortex-M85
Clock Frequency: Up to 800MHz
Embedded Non-Volatile Memory (eNVM): 2MB
Process Technology: 18nm FD-SOI
Operating Temperature Range: -40°C to +140°C
Package: VQFN-68 (8mm × 8mm)
Advanced Features
- Arm Cortex-M85 core with clock speeds up to 800MHz
- Delivers performance exceeding 6 CoreMarks/MHz and over 3 DMIPS/MHz
- Approximately 40% performance improvement over Cortex-M7 architecture
- Integrated 2MB embedded non-volatile memory (eNVM)
- 1.5MB system SRAM (partially with ECC) and 192KB zero-wait-state TCM
- Manufactured using 18nm FD-SOI (Fully Depleted Silicon-on-Insulator) process
- Exceptional radiation tolerance for harsh environments
- Comprehensive communication interfaces including 1Gbps Ethernet with TSN support
- USB high-speed and full-speed interfaces with integrated PHY
- Multiple I²C, I³C, USART, and UART interfaces
- Integrated Chrom-ART 2D GPU, JPEG accelerator, and LCD-TFT controller
- 68-pin VQFN package with compact 8×8mm dimensions
