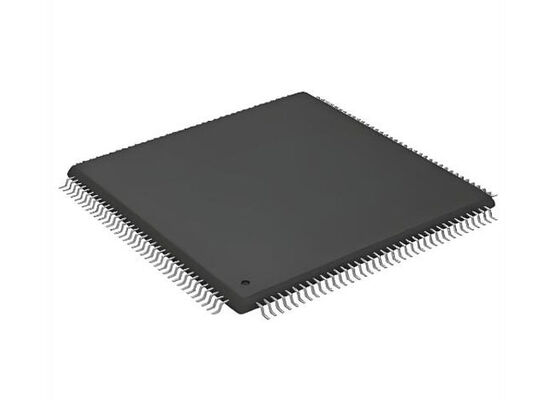

STM32V873ZI Microcontroller MCU
High-performance microcontroller with 2MB eNVM and STM32 Arm Cortex-M85 core, designed for industrial control and edge AI applications.
Product Overview
The STM32V873ZI is part of the STM32V8 series, utilizing an 18nm FD-SOI process with an Arm Cortex-M85 core. Featuring 2MB of embedded non-volatile memory and packaged in an LQFP-144 format, it provides extensive pin resources for complex industrial applications.
Key Specifications
- Core: Arm Cortex-M85
- Clock Frequency: Up to 800MHz
- Graphics: Chrom-ART
- Image Processing: 16-bit parallel camera interface
- Embedded Memory: 2MB eNVM
- Process Technology: 18nm FD-SOI
- Temperature Range: -40°C to +140°C
- Package: LQFP-144 (20mm × 20mm)
Advanced Features
Processor Performance
- Arm Cortex-M85 core with integrated Helium MVE vector extensions
- 800MHz operating frequency achieving 5072 CoreMark score
- 6x improvement in DSP and machine learning processing speeds
- Approximately 40% higher performance than Cortex-M7
Process & Temperature
- 18nm FD-SOI process with body biasing for energy efficiency
- High radiation tolerance
- Extended operating temperature range: -40°C to +140°C
Memory System
- 2MB embedded non-volatile memory (eNVM) with ECC error correction
- 1.5MB system SRAM (partially ECC-protected)
- 192KB zero-wait-state TCM for high-speed data access
- 8KB backup RAM
Communications & Peripherals
- Networking: 1Gbps Ethernet with TSN support, integrated USB PHY, USB-C PD controller, 3 FD-CAN ports
- Serial Interfaces: 3x I²C, 2x I³C, 5x USART, 5x UART, 1x LPUART, 6x SPI (4 configurable as I²S)
- Multimedia: Chrom-ART 2D GPU, JPEG accelerator, LCD-TFT controller, parallel camera interface
- Analogue & Control: 3 × 12-bit ADCs, 2 × 12-bit DACs, motor control timers, GPDMA/HPDMA, Hexa-SPI, OctoSPI
