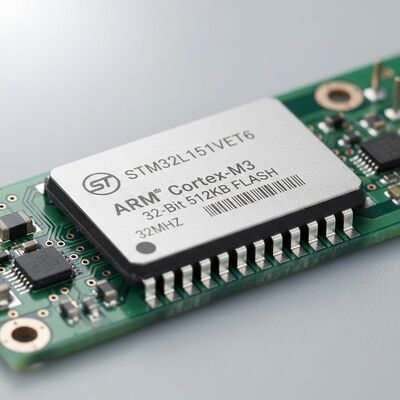

STM32L151VET6 Microcontroller MCU
Ultra-Low-Power ARM Cortex-M3 32-Bit 32MHz MCU with USB connectivity and extensive peripheral support
Product Overview
The STM32L151VET6 microcontroller features ultra-low-power operation with a high-performance Arm® Cortex®-M3 32-bit RISC core running at 32 MHz (33.3 DMIPS). It includes a memory protection unit, high-speed embedded memories (up to 512 KB Flash and 80 KB RAM), and comprehensive I/O and peripheral connectivity via two APB buses.
Technical Specifications
| Core Processor |
ARM® Cortex®-M3 |
| Core Size |
32-Bit |
| Speed |
32MHz |
| Connectivity |
I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals |
Brown-out Detect/Reset, Cap Sense, DMA, I2S, POR, PWM, WDT |
| Number of I/O |
83 |
| Program Memory Size |
512KB (512K x 8) |
| Program Memory Type |
FLASH |
| EEPROM Size |
16K x 8 |
| RAM Size |
80K x 8 |
| Voltage Supply |
1.8V ~ 3.6V |
| Data Converters |
A/D 25x12b; D/A 2x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 85°C (TA) |
Key Features
- Ultra-low-power platform with 1.65V to 3.6V power supply
- Operating temperature range: -40°C to 105°C
- Power efficiency: 290 nA Standby mode, 195 µA/MHz Run mode
- 10 nA ultra-low I/O leakage with 8 µs wakeup time
- Arm® Cortex®-M3 32-bit CPU with memory protection unit
- Up to 34 capacitive sensing channels
- Comprehensive clock sources and reset management
- 512 KB Flash memory with ECC and 80 KB RAM
- 16 KB true EEPROM with ECC
- Rich analog peripherals including 12-bit ADC and DAC
- Multiple communication interfaces: USB 2.0, USARTs, SPIs, I2Cs
- Development support: serial wire debug, JTAG and trace
Applications
Industrial automation, home automation, building automation, and city automation systems
