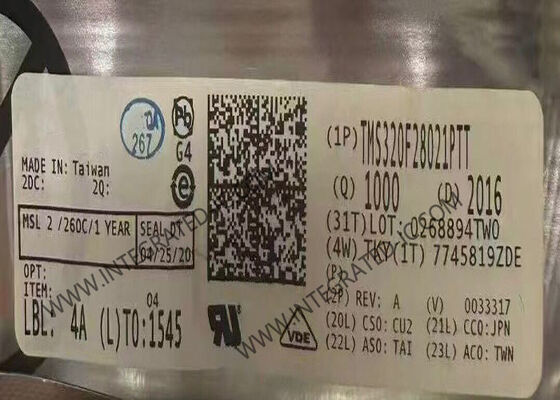

TMS320F28021PTT Microcontroller MCU
C2000™ 32-Bit 40MHz MCU With 64KB Flash
Product Overview
TMS320F28021PTT C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives, solar inverters, digital power systems, electric vehicles, motor control, and sensing applications.
Technical Specifications
| Core Processor |
C28x |
| Core Size |
32-Bit |
| Speed |
40MHz |
| Connectivity |
I2C, SCI, SPI, UART/USART |
| Peripherals |
Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O |
22 |
| Program Memory Size |
64KB (32K x 16) |
| Program Memory Type |
FLASH |
| RAM Size |
5K x 16 |
| Voltage Supply |
1.71V ~ 1.995V |
| Data Converters |
A/D 13x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 105°C (TA) |
Key Features
- High-efficiency 32-bit CPU (TMS320C28x)
- 40 MHz (25-ns cycle time)
- 16 * 16 and 32 * 32 MAC operations
- 16 * 16 dual MAC
- Harvard bus architecture with atomic operations
- Fast interrupt response and processing
- Unified memory programming model
- Code-efficient (C/C++ and Assembly)
- Single 3.3-V supply with no power sequencing requirement
- Integrated power-on and brown-out resets
- Low power consumption with small packaging options
- Up to 22 programmable GPIO pins with input filtering
- Peripheral Interrupt Expansion (PIE) block
- Three 32-bit CPU timers
- 128-bit security key and lock for code protection
- Serial port peripherals: SCI, SPI, I2C
- Enhanced control peripherals: ePWM, HRPWM, eCAP
- Analog-to-Digital Converter (ADC) with on-chip temperature sensor
- Advanced emulation and real-time debug features
Target Applications
- Air conditioner outdoor units
- Inverter & motor control systems
- Textile machinery
- Micro inverters
- AC drive power stage modules
- AC-input BLDC motor drives
- DC-input BLDC motor drives
- Industrial AC-DC converters
- Three phase UPS systems
- Merchant DC/DC converters
- Network & server power supply units
- Telecom rectifiers
