CY8C4147AZS-S455 32-Bit Microcontroller MCU with 48MHz Speed 128KB Flash Memory Automotive Grade PSoC™ 4100S Plus

CY8C4147AZS-S455 32-Bit Microcontroller MCU with 48MHz Speed 128KB Flash Memory Automotive Grade PSoC™ 4100S Plus
CY8C4147AZS-S455 32-Bit Microcontroller MCU with 48MHz Speed 128KB Flash Memory Automotive Grade PSoC™ 4100S Plus CY8C4147AZS-S455 32-Bit Microcontroller MCU with 48MHz Speed 128KB Flash Memory Automotive Grade PSoC™ 4100S Plus

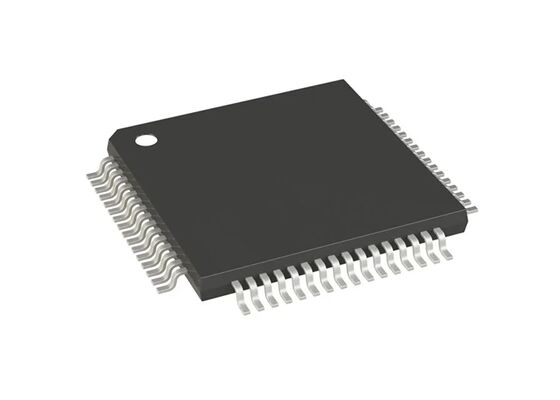

Large Image :  CY8C4147AZS-S455 32-Bit Microcontroller MCU with 48MHz Speed 128KB Flash Memory Automotive Grade PSoC™ 4100S Plus

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: CY8C4147AZS-S455
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFP-64
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

CY8C4147AZS-S455 32-Bit Microcontroller MCU with 48MHz Speed 128KB Flash Memory Automotive Grade PSoC™ 4100S Plus

Description
Part Number: CY8C4147AZS-S455 Core:: ARM Cortex M0+
Program Memory Size:: 128 KB Data Bus Width:: 32 Bit
ADC Resolution:: 12 Bit Maximum Clock Frequency:: 48 MHz
Highlight:

48MHz Microcontroller MCU

,

128KB Flash Memory PSoC™ 4100S Plus Microcontroller

,

Automotive Grade 32-Bit Microcontroller

CY8C4147AZS-S455 Microcontroller MCU 32-Bit 48MHz Automotive PSoC™ 4100S Plus Microcontroller
The CY8C4147AZS-S455 is a 32-bit Automotive PSoC™ 4100S Plus family microcontroller featuring a single Arm Cortex-M0+ processor operating at 48 MHz. This device combines an MCU with communication and timing peripherals, CAPSENSE™ capacitive touch-sensing system, and versatile analog capabilities. Meeting AEC-Q100 standards, it is ideal for HMI and sensing applications in automotive environments.
Product Specifications
Parameter Specification
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit
Speed 48MHz
Connectivity I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
Peripherals Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT
Number of I/O 54
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 16K x 8
Voltage Supply 1.71V ~ 5.5V
Data Converters A/D 16x10/16x12b SAR; D/A 2x7b
Oscillator Type External, Internal
Operating Temperature -40°C ~ 105°C (TA)
Grade Automotive
Key Features
  • 32-bit MCU Subsystem with 48MHz Arm Cortex-M0+ CPU
  • Up to 64KB of flash with read accelerator and 8KB of SRAM
  • Programmable analog including two opamps with reconfigurable drive modes
  • 12-bit 1Msps SAR ADC with differential and single-ended modes
  • Two current DACs (IDACs) for general-purpose or capacitive sensing
  • Low-power 1.71V to 5.5V operation with deep sleep mode
  • Cypress CapSense Sigma-Delta (CSD) with best-in-class SNR and water tolerance
  • LCD segment drive capability on GPIOs
  • Three independent Serial Communication Blocks (SCBs)
  • Five 16-bit timer/counter/pulse-width modulator (TCPWM) blocks
  • Up to 36 programmable GPIO pins with flexible configuration
Product Benefits
  • Low-power compute and integration capabilities
  • Differentiated Touch HMI features integrated in MCU
  • Supports resistive and current sensing applications
  • High-speed communication with Fast I2C/CAN-FD support
  • Increased security with encryption support
  • Easy-to-use software for rapid application prototyping
Related Components in Stock
Part Number Package
TEF7094AHN HVQFN32
TEF6686AHN HVQFN32
TEF6689AHN HVQFN32
TEF6688AHN HVQFN32
TEF6689HN HVQFN32
A2I20D020NR1 TO-270-17
TEF6657AHN HVQFN32
TEF6692AHN HVQFN32
TEF6687HN HVQFN32
MMRF2010GNR1 TO-270-14
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
