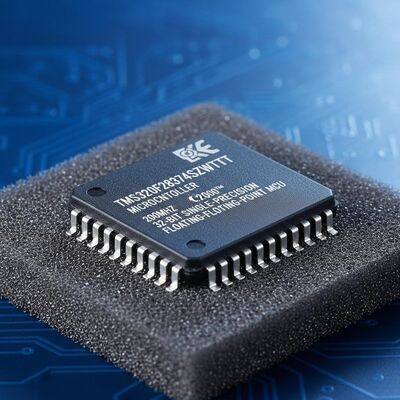

TMS320F28374SZWTT Microcontroller MCU
200MHz C2000™ 32-Bit Single-Precision Floating-Point MCU
Product Overview
The TMS320F28374SZWTT is a powerful 32-bit floating-point microcontroller unit (MCU) designed for advanced closed-loop control applications including industrial motor drives, solar inverters, digital power systems, electric vehicles, transportation systems, and sensing/signal processing applications. Accelerate development with available DigitalPower SDK and MotorControl SDK for C2000 MCUs.
Technical Specifications
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 200MHz |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 169 |
| Program Memory Size | 512KB (256K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 66K x 16 |
| Voltage Supply | 1.14V ~ 3.47V |
| Data Converters | A/D 24x12b; D/A 3x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TJ) |
Key Features
- TMS320C28x 32-bit CPU at 200MHz
- IEEE 754 single-precision Floating-Point Unit (FPU)
- Trigonometric Math Unit (TMU) and Viterbi/Complex Math Unit (VCU-II)
- Programmable Control Law Accelerator (CLA) at 200MHz
- On-chip memory: 512KB flash (ECC-protected) and 132KB RAM
- Dual-zone security supporting third-party development
- Multiple communication peripherals including USB 2.0, CAN, SPI, and I2C
- Advanced analog subsystem with up to four ADCs
- 24 PWM channels with enhanced features including 16 HRPWM channels
- Functional safety-compliant for industrial applications
- Hardware Built-in Self Test (HWBIST)
Target Applications
- Medium/short range radar systems
- Traction inverter motor control
- HVAC large commercial motor control
- Automated sorting equipment
- CNC control systems
- EV charging stations (AC/DC)
- Energy storage power conversion systems
- Solar power inverters and optimizers
- Servo drive control modules
- Industrial AC-DC power supplies
- Three phase UPS systems
