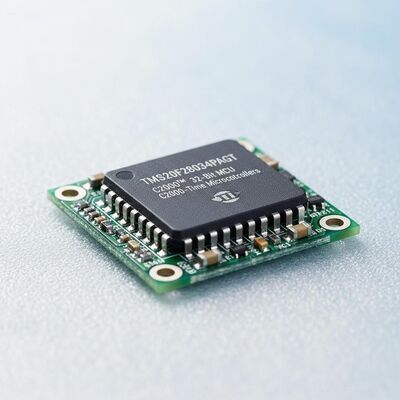

TMS320F28034PAGT 32-Bit C2000 Real-Time Microcontroller MCU with 60MHz Speed and 128KB Flash Memory

The TMS320F28034PAGT is a 32-bit real-time microcontroller from the C2000™ Piccolo family, engineered for high-precision control applications including motor control, digital power conversion, and industrial automation systems.

• High-efficiency 32-bit CPU (TMS320C28x)
  • 60MHz (16.67ns cycle time)
  • 16 * 16 and 32 * 32 MAC operations
  • 16 * 16 dual MAC
  • Harvard bus architecture
  • Atomic operations
  • Fast interrupt response and processing
  • Unified memory programming model
  • Code-efficient (in C/C++ and Assembly)
• Programmable Control Law Accelerator (CLA)
  • 32-bit floating-point math accelerator
  • Executes code independently of the main CPU
• System Cost Optimization
  • Single 3.3V supply
  • No power sequencing requirement
  • Integrated power-on reset and brown-out reset
  • Low power consumption
  • No analog support pins
• Up to 45 individually programmable, multiplexed GPIO pins with input filtering
• Peripheral Interrupt Expansion (PIE) block supporting all peripheral interrupts
• Three 32-bit CPU timers
• Independent 16-bit timer in each Enhanced Pulse Width Modulator (ePWM)
• On-chip memory (Flash, SARAM, OTP, Boot ROM)
• Code-security module with 128-bit security key and lock
• Comprehensive serial port peripherals
• Enhanced control peripherals including ePWM, HRPWM, eCAP, HRCAP, eQEP, and ADC
• On-chip temperature sensor and comparator
