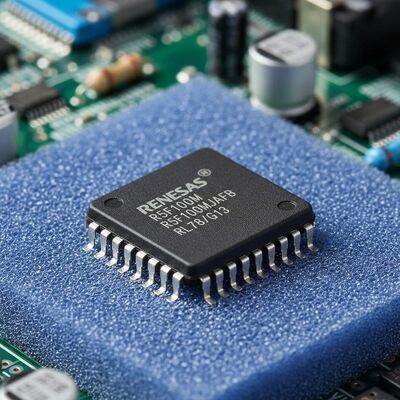

R5F100MJAFB Microcontroller MCU RL78/G13 Series 16-Bit with 256 kB Program Memory 32 MHz Clock Frequency and 74 I/O

R5F100MJAFB Microcontroller MCU RL78/G13 Series 16-Bit with 256 kB Program Memory 32 MHz Clock Frequency and 74 I/O
R5F100MJAFB Microcontroller MCU RL78/G13 Series 16-Bit with 256 kB Program Memory 32 MHz Clock Frequency and 74 I/O R5F100MJAFB Microcontroller MCU RL78/G13 Series 16-Bit with 256 kB Program Memory 32 MHz Clock Frequency and 74 I/O

Large Image :  R5F100MJAFB Microcontroller MCU RL78/G13 Series 16-Bit with 256 kB Program Memory 32 MHz Clock Frequency and 74 I/O

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: R5F100MJAFB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFQFP-80
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

R5F100MJAFB Microcontroller MCU RL78/G13 Series 16-Bit with 256 kB Program Memory 32 MHz Clock Frequency and 74 I/O

Description
Part Number: R5F100MJAFB Core: RL78
Program Memory Size: 256 KB Maximum Clock Frequency: 32 MHz
Number Of I/Os: 74 I/O ADC Resolution: 8 Bit/10 Bit
Highlight:

256 kB Program Memory Microcontroller MCU

,

32 MHz Clock Frequency RL78/G13 Series

,

74 I/O 16-Bit Microcontroller

R5F100MJAFB Microcontroller MCU
RL78/G13 Series 16-Bit High Function Microcontrollers LFQFP-80
Product Overview
R5F100MJAFB is part of the RL78/G13 Series 16-Bit Low Power, High Function Microcontrollers designed for general purpose applications. These microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) with high performance of 43.2 DMIPS (32 MHz). They feature an on-chip oscillator, data flash, A/D converter, and comprehensive peripheral integration.
Technical Specifications
Series RL78/G13
Core Processor RL78
Core Size 16-Bit
Speed 32MHz
Connectivity CSI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 64
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 8K x 8
RAM Size 20K x 8
Voltage Supply 1.6V ~ 5.5V
Data Converters A/D 17x8/10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 80-LFQFP (12x12)
Package / Case 80-LQFP
Key Features
  • CPU: RL78 core, Maximum 32MHz operation
  • Wide voltage range: 1.6V to 5.5V
  • Package: 80-pin LFQFP
  • Memory: SRAM Maximum 32KB, Program Flash Maximum 512KB
  • Timer: 16-bit Timer (8 channels), 8-bit Timer (8 channels), Watchdog Timer (1 channel), Interval Timer (1 channel)
  • PWM: PWM Output (7 channels)
  • Analog function: 10-bit A/D Converter (9 channels)
  • On-chip Oscillator Frequency: High-Speed: 32, 24, 16, 12, 8, 4, 1MHz; Low-speed: 15kHz
  • Additional features: RTC, Power-On Reset, Low Voltage Detection
Target Applications
Office Automation Home Appliance Healthcare Security Medical Sensor Probe 240W EPR USB-C Power Meter Household Water Pump LoRaWAN Street Light Controller Unified Speed Control Platform for BLDC Ceiling Fans
