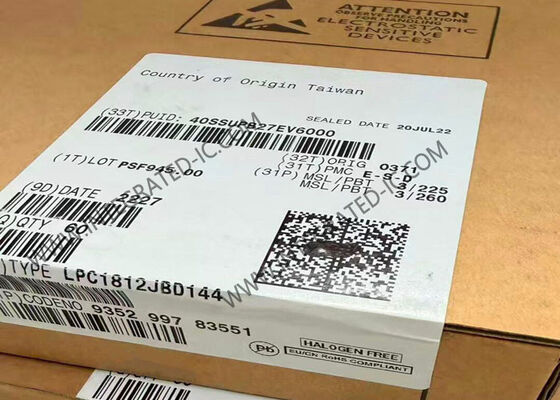

LPC1812JBD144 Microcontroller MCU 180MHz High Performance 32-Bit ARM Cortex-M3 Microcontroller

LPC1812JBD144 Microcontroller MCU 180MHz High Performance 32-Bit ARM Cortex-M3 Microcontroller​

Product Description Of LPC1812JBD144

LPC1812JBD144 is Arm Cortex-M3 based microcontrollers for embedded applications. The Arm Cortex-M3 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration.

LPC1812JBD144 operate at CPU frequencies of up to 180 MHz. The Arm Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The Arm Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching.

Specification Of LPC1812JBD144

Features Of LPC1812JBD144

Processor core
Arm Cortex-M3 processor, running at CPU frequencies of up to 180 MHz
Arm Cortex-M3 built-in Memory Protection Unit (MPU) supporting eight regions
Arm Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
Non-maskable Interrupt (NMI) input
JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points
Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support
System tick timer
On-chip memory
Up to 1 MB on-chip dual bank flash memory with flash accelerator
16 kB on-chip EEPROM data memory
136 kB SRAM for code and data use
Multiple SRAM blocks with separate bus access
64 kB ROM containing boot code and on-chip software drivers
64 bit of One-Time Programmable (OTP) memory for general-purpose use
Clock generation unit
Crystal oscillator with an operating range of 1 MHz to 25 MHz
12 MHz internal RC oscillator trimmed to 2 % accuracy over temperature and voltage (1 % accuracy for Tamb = 0 °C to 85 °C)
Ultra-low power RTC crystal oscillator
Three PLLs allow CPU operation up to the maximum CPU rate without the need for a high-frequency crystal. The second PLL can be used with the High-speed USB, the third PLL can be used as audio PLL
Clock output

Applications Of LPC1812JBD144

Industrial
Consumer
White goods
RFID readers
e-Metering
