ATSAMC21E17A-AUT Microcontroller MCU 5V 32-Bit 48MHz ARM Cortex M0+ MCU With CAN-FD

ATSAMC21E17A-AUT Microcontroller MCU 5V 32-Bit 48MHz ARM Cortex M0+ MCU With CAN-FD
ATSAMC21E17A-AUT Microcontroller MCU 5V 32-Bit 48MHz ARM Cortex M0+ MCU With CAN-FD

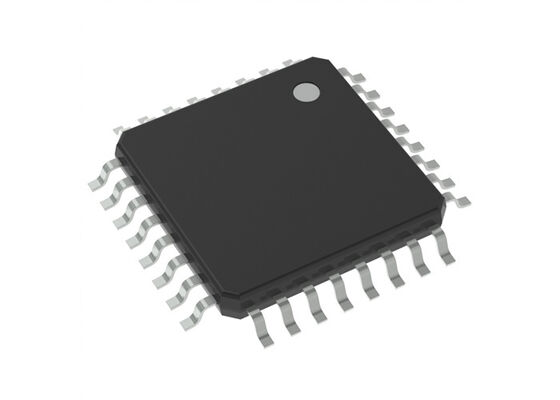

Large Image :  ATSAMC21E17A-AUT Microcontroller MCU 5V 32-Bit 48MHz ARM Cortex M0+ MCU With CAN-FD

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ATSAMC21E17A-AUT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFP-32
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ATSAMC21E17A-AUT Microcontroller MCU 5V 32-Bit 48MHz ARM Cortex M0+ MCU With CAN-FD

Description
Part Number: ATSAMC21E17A-AUT Core:: ARM Cortex M0+
Program Memory Size:: 128 KB ADC Resolution:: 12 Bit
Maximum Clock Frequency:: 48 MHz Number Of I/Os:: 26 I/O

ATSAMC21E17A-AUT Microcontroller MCU 5V 32-Bit 48MHz ARM Cortex M0+ MCU With CAN-FD

The ATSAMC21E17A-AUT is engineered for industrial and commercial applications operating in noisy environments. This product features robust communication peripherals including the SERCOM module and CAN-FD, advanced motor control peripherals, and Peripheral Touch Control (PTC) for developing reliable user interfaces.

Specifications
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit
Speed 48MHz
Connectivity CANbus, I2C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, WDT
Number of I/O 26
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 10x12b, 1x16b; D/A 1x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Key Features
  • ARM Cortex-M0+ CPU running at up to 48MHz
  • Single-cycle hardware multiplier
  • Micro Trace Buffer
  • Memory Protection Unit (MPU)
  • 128KB in-system self-programmable Flash
  • 4KB independent self-programmable Flash for EEPROM emulation
  • 16KB SRAM Main Memory
  • Power-on reset (POR) and brown-out detection (BOD)
  • Internal and external clock options with 48MHz to 96MHz
  • Fractional Digital Phase Locked Loop (FDPLL96M)
  • 16 external interrupts
  • One non-maskable interrupt
  • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
  • Idle, standby, and off sleep modes
  • SleepWalking peripherals
  • Hardware Divide and Square Root Accelerator (DIVAS)
  • 12-channel Direct Memory Access Controller (DMAC)
  • 12-channel Event System
  • Up to eight 16-bit Timer/Counters (TC), configurable as various timer configurations
  • Up to four compare channels with optional complementary output
  • Generation of synchronized pulse width modulation (PWM) pattern across port pins
  • Deterministic fault protection, fast decay and configurable dead-time between complementary outputs
  • Dithering that increases resolution with up to 5 bit and reduces quantization error
  • Frequency Meter
  • 32-bit Real Time Counter (RTC) with clock/calendar function
  • Watchdog Timer (WDT)
  • CRC-32 generator
  • CAN 2.0A/B and ISO CAN FD; ISO 1189801:2015
  • Each CAN interface has two selectable pin locations to switch between two external CAN transceivers
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C up to 3.4MHz (Except SERCOM6 and SERCOM7)
  • SPI, LIN master/slave, RS-485, PMBus
  • Four Configurable Custom Logic (CCL)
  • Differential and single-ended input
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
  • One 16-bit Sigma-Delta Analog-to-Digital Converter (SDADC)
  • 10-bit, 350ksps Digital-to-Analog Converter (DAC)
  • Three Analog Comparators (AC) with window compare function
  • Integrated Temperature Sensor
  • Peripheral Touch Controller (PTC) with 256-channel capacitive touch and proximity sensing I/O
  • Up to 26 programmable I/O pins
  • Drop in compatible with select SAM D20 and SAM D21
  • 2.7V - 5.5V operating voltage
