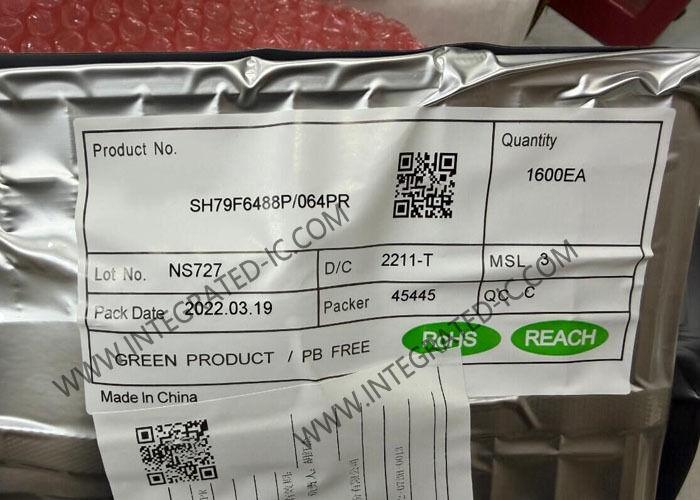

SH79F6488P/064PR Microcontroller MCU Enhanced 8051 Microcontroller LQFP-64 8-Bit MCU

SH79F6488P/064PR is a high-performance 8051 compatible microcontroller featuring 20-bit Σ-Δ ADC and LCD Driver. Its built-in pipeline instruction fetch structure enables fast operation speed and superior calculation performance.

This microcontroller maintains most standard 8051 features including internal 256 bytes RAM, UART, and INT0-2 interfaces. Additionally, it provides external 2304 bytes RAM and contains 64K bytes Flash memory for both program and data storage.

• 8-bit microcontroller with pipeline structured 8051 compatible instruction set
• Flash ROM: 64K Bytes
• RAM: internal 256 Bytes, external 2304 Bytes
• EEPROM-like: built-in 2048 Bytes
• Operation Voltage: VDD = 3V - 5.5V
• Oscillator options:
  • Crystal oscillator: 400kHz - 16MHz
  • Crystal oscillator: 32.768kHz
  • Internal RC: 12MHz
  • PLL: 48MHz
• 72 CMOS bi-directional I/O pins with built-in pull-up resistors
• Three 16-bit timer/counters (T2, T3, T4) and Base timer (BT)
• Comprehensive interrupt sources including timers, INT interfaces, PWM, ADC, EUART, SCM, and SPI
• Enhanced UART (EUART)
• Three 12-bit PWM timers
• LCD driver supporting multiple configurations:
  • 4 × 36 dots (1/4 duty 1/3 bias)
  • 5 × 35 dots (1/5 duty 1/3 bias)
  • 6 × 34 dots (1/6 duty 1/3 bias)
• Low power LCD operation
• Built-in regulator with 2.7V or 3.3V output
• 20-bit Σ-Δ Analog Digital Converter (ADC) with 20-bit data output and 16-bit resolution
• Programmable Gain Amplifier (PGA) with 1X-128X gain
• Built-in Operational Amplifier (OP)
• SPI (Master/Slave Mode)
• Low Voltage Reset (LVR) function with 3.1V or 4.0V options
• CPU Machine cycle: 1 oscillator clock
• Built-in Watch Dog Timer (WDT)
• Built-in oscillator Warm-up timer
• Low power operation modes: Idle Mode and Power-Down Mode
