TMS320F28027PTS 32-Bit Microcontroller MCU with 60MHz Speed for Real-Time Control Applications

TMS320F28027PTS 32-Bit Microcontroller MCU with 60MHz Speed for Real-Time Control Applications
TMS320F28027PTS 32-Bit Microcontroller MCU with 60MHz Speed for Real-Time Control Applications

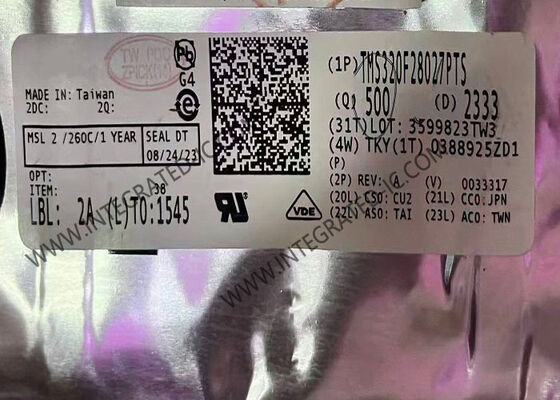

Large Image :  TMS320F28027PTS 32-Bit Microcontroller MCU with 60MHz Speed for Real-Time Control Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TMS320F28027PTS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TMS320F28027PTS 32-Bit Microcontroller MCU with 60MHz Speed for Real-Time Control Applications

Description
Part Number: TMS320F28027PTS Series: C2000™ C28x Piccolo™
Core Processor: C28x Core Size: 32-Bit
Speed: 60MHz Number Of I/O: 22

TMS320F28027PTS Microcontroller MCU C2000™ 32-Bit MCUs 60MHz Real-Time Digital Power MCUs
Product Overview

TMS320F28027PTS is a 32-bit real-time control MCU from the C2000 Piccolo series, designed specifically for motor control, digital power, and industrial automation. It integrates a C28x core and CLA coprocessor, operates at 60 MHz, features 64 KB of Flash memory, and is housed in an LQFP48 package.

Specifications
Product Category 32-bit Microcontrollers - MCU
Mounting Style SMD/SMT
Package / Case LQFP-48
Core C28x
Program Memory Size 64 kB
Data RAM Size 12 kB
Data Bus Width 32 bit
ADC Resolution 12 bit
Maximum Clock Frequency 60 MHz
Number of I/Os 22 I/O
Supply Voltage - Min 1.71 V
Supply Voltage - Max 1.89 V
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Data RAM Type SARAM
Interface Type I2C, SCI, SPI
Number of ADC Channels 13 Channel
Number of Timers/Counters 3 Timer
Key Features
  • High-efficiency 32-bit CPU (TMS320C28x)
    • 60 MHz (16.67-ns cycle time)
    • 50 MHz (20-ns cycle time)
    • 40 MHz (25-ns cycle time)
    • 16 × 16 and 32 × 32 MAC operations
    • 16 × 16 dual MAC
    • Harvard bus architecture
    • Atomic operations
    • Fast interrupt response and processing
    • Unified memory programming model
    • Code-efficient (in C/C++ and Assembly)
  • Endianness: Little endian
  • Low cost for both device and system:
    • Single 3.3-V supply
    • No power sequencing requirement
    • Integrated power-on and brown-out resets
    • Small packaging, as low as 38-pin available
    • Low power
    • No analog support pins
  • Clocking:
    • Two internal zero-pin oscillators
    • On-chip crystal oscillator and external clock input
    • Watchdog timer module
    • Missing clock detection circuitry
  • Up to 22 individually programmable, multiplexed GPIO pins with input filtering
  • Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
  • Three 32-bit CPU timers
  • Independent 16-bit timer in each Enhanced Pulse Width Modulator (ePWM)
  • On-chip memory
    • Flash, SARAM, OTP, Boot ROM available
  • Code-security module
  • 128-bit security key and lock
    • Protects secure memory blocks
    • Prevents firmware reverse engineering
Applications
  • Air conditioner outdoor unit
  • Inverter & motor control
  • Textile machine
  • Micro inverter
  • AC drive power stage module
  • AC-input BLDC motor drive
  • DC-input BLDC motor drive
  • Industrial AC-DC
  • Three phase UPS
  • Merchant DC/DC
  • Merchant network & server PSU
  • Merchant telecom rectifiers
