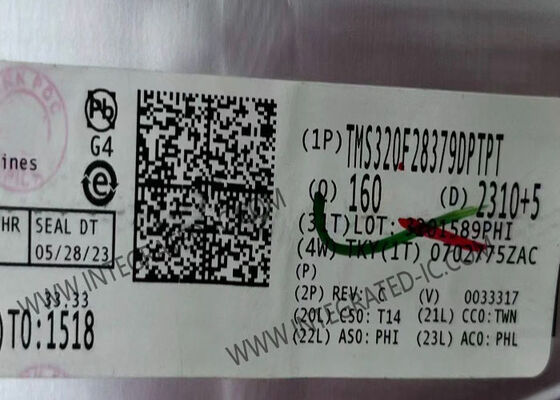

TMS320F28379DPTPT Microcontroller MCU Dual-Core C2000™ 32-Bit Real-Time Microcontrollers

TMS320F28379DPTPT Microcontroller MCU Dual-Core C2000™ 32-Bit Real-Time Microcontrollers

Product Description Of TMS320F28379DPTPT
TMS320F28379DPTPT is a powerful 32-bit floating-point microcontroller unit (MCU) designed for advanced closed-loop control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; and sensing and signal processing. To accelerate application development, the DigitalPower software development kit (SDK) for C2000 MCUs and the MotorControl software development kit (SDK) for C2000™ MCUs are available. The TMS320F28379DPTPT supports a new dual-core C28x architecture that significantly boosts system performance. The integrated analog and control peripherals also let designers consolidate control architectures and eliminate multiprocessor use in high-end systems.

Specifications Of TMS320F28379DPTPT

Features Of TMS320F28379DPTPT
Dual-core architecture
Two TMS320C28x 32-bit CPUs
200MHz
IEEE 754 single-precision Floating-Point Unit (FPU)
Trigonometric Math Unit (TMU)
Viterbi/Complex Math Unit (VCU-II)
Two programmable Control Law Accelerators (CLAs)
200MHz
IEEE 754 single-precision floating-point instructions
Executes code independently of main CPU
On-chip memory
512KB (256KW) or 1MB (512KW) of flash (ECC-protected)
172KB (86KW) or 204KB (102KW) of RAM (ECC-protected or parity-protected)
Dual-zone security supporting third-party development
Unique identification number
Clock and system control
Two internal zero-pin 10MHz oscillators
On-chip crystal oscillator
Windowed watchdog timer module
Missing clock detection circuitry
1.2V core, 3.3V I/O design
System peripherals
Two External Memory Interfaces (EMIFs) with ASRAM and SDRAM support
Dual 6-channel Direct Memory Access (DMA) controllers
Up to 169 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins with input filtering
Expanded Peripheral Interrupt controller (ePIE)
Multiple Low-Power Mode (LPM) support with external wakeup
Communications peripherals
USB 2.0 (MAC + PHY)
Support for 12-pin 3.3V-compatible Universal Parallel Port (uPP) interface
Two Controller Area Network (CAN) modules (pin-bootable)
Three high-speed (up to 50MHz) SPI ports (pin-bootable)
Two Multichannel Buffered Serial Ports (McBSPs)
Four Serial Communications Interfaces (SCI/UART) (pin-bootable)
Two I2C interfaces (pin-bootable)
Analog subsystem
Up to four Analog-to-Digital Converters (ADCs)
16-bit mode
1.1MSPS each (up to 4.4MSPS system throughput)
Differential inputs
Up to 12 external channels
12-bit mode
3.5MSPS each (up to 14MSPS system throughput)
Single-ended inputs
Up to 24 external channels
Single Sample-and-Hold (S/H) on each ADC
Hardware-integrated post-processing of ADC conversions
Saturating offset calibration
Error from setpoint calculation
High, low, and zero-crossing compare, with interrupt capability
Trigger-to-sample delay capture
Eight windowed comparators with 12-bit Digital-to-Analog Converter (DAC) references
Three 12-bit buffered DAC outputs
Enhanced control peripherals
24 Pulse Width Modulator (PWM) channels with enhanced features
16 High-Resolution Pulse Width Modulator (HRPWM) channels
High resolution on both A and B channels of 8 PWM modules
Dead-band support (on both standard and high resolution)
Six Enhanced Capture (eCAP) modules
Three Enhanced Quadrature Encoder Pulse (eQEP) modules
Eight Sigma-Delta Filter Module (SDFM) input channels, 2 parallel filters per channel
Standard SDFM data filtering
Comparator filter for fast action for out of range
Configurable Logic Block (CLB)
Augments existing peripheral capability
Supports position manager solutions

Applications Of TMS320F28379DPTPT
• Medium/short range radar
• Traction inverter motor control
• HVAC large commercial motor control
• Automated sorting equipment
• CNC control
• AC charging (pile) station
• DC charging (pile) station
• EV charging station power module
• Energy storage power conversion system (PCS)
• Central inverter
• Solar power optimizer
• String inverter
• Inverter & motor control
• On-board (OBC) & wireless charger
• Linear motor segment controller
• Servo drive control module
• AC-input BLDC motor drive
• DC-input BLDC motor drive
• Industrial AC-DC
• Three phase UPS
