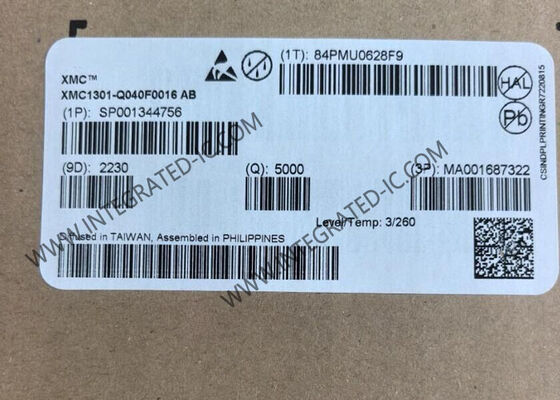

XMC1301-Q040F0016 AB 32-Bit ARM Cortex-M0 Microcontroller MCU with 32MHz Speed and 16KB Flash Memory

XMC1301-Q040F0016 AB 32-Bit ARM Cortex-M0 Microcontroller MCU with 32MHz Speed and 16KB Flash Memory
XMC1301-Q040F0016 AB 32-Bit ARM Cortex-M0 Microcontroller MCU with 32MHz Speed and 16KB Flash Memory

Large Image :  XMC1301-Q040F0016 AB 32-Bit ARM Cortex-M0 Microcontroller MCU with 32MHz Speed and 16KB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: XMC1301-Q040F0016 AB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-80
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

XMC1301-Q040F0016 AB 32-Bit ARM Cortex-M0 Microcontroller MCU with 32MHz Speed and 16KB Flash Memory

Description
Part Number: XMC1301-Q040F0016 AB Core Processor: ARM® Cortex®-M0
Core Size: 32-Bit Speed: 32MHz
Number Of I/O: 27 Program Memory Size: 16KB (16K X 8)

XMC1301-Q040F0016 AB Microcontroller MCU 32MHz 32-Bit ARM Cortex-M0 XMC1000 Microcontroller IC
Product Overview

XMC1301-Q040F0016 AB belongs to the XMC1000 Family of industrial microcontrollers based on the ARM® Cortex®-M0 processor core. This microcontroller is ideal for applications like digital power conversion and motor control, featuring dedicated peripherals for Field Oriented Control (FOC), brushless (BLDC), brushed DC and PMSM motors. Supported by a comprehensive development environment for rapid time-to-market.

Technical Specifications
  • Core Processor: ARM® Cortex®-M0
  • Core Size: 32-Bit
  • Speed: 32MHz
  • Connectivity: I2C, LINbus, SPI, UART/USART
  • Peripherals: Brown-out Detect/Reset, I2S, POR, PWM, WDT
  • Number of I/O: 27
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 16K x 8
  • Voltage Supply: 1.8V ~ 5.5V
  • Data Converters: A/D 16x12b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PG-VQFN-40-13
  • Package / Case: 40-VFQFN Exposed Pad
Key Features
  • 32 MHz core / 64 MHz peripheral clock
  • Operating range 1.8 - 5.5 V, -40 - 85°C
  • 8KB Flash (ECC), 16KB RAM (parity)
  • 12-bit ADC, 1 Ms/s, 12 inputs, 2x S&H
  • 3x analog comparator, 30ns
  • 8 x 16-bit capture, compare, PWM timers
  • Hall sensor / encoder interface
  • 2 serial channel, SPI, UART, I2C, LIN
  • Real Time Clock, watchdog, PRNG
  • VQFN-40, 5x5 mm², 0.4mm pitch, 35 IO
Applications

Home appliances, Kitchen Hoods
