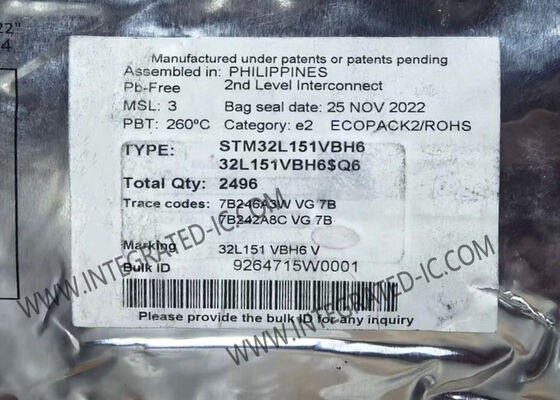

STM32L151VBH6 Ultra-low-power 32-Bit ARM Cortex-M3 Microcontroller MCU with 128KB Flash Memory

STM32L151VBH6 is an ultra-low-power 32-bit Arm Cortex-M3 Microcontroller that incorporates USB connectivity with a high-performance ARM® Cortex®-M3 32-bit RISC core operating at 32 MHz frequency (33.3 DMIPS). It features a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 128 Kbytes and RAM up to 16 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

The device offers a 12-bit ADC, 2 DACs and 2 ultra-low-power comparators, six general-purpose 16-bit timers and two basic timers, which can be used as time bases.

• Core Processor: ARM® Cortex®-M3
• Core Size: 32-Bit
• Speed: 32MHz
• Number of I/O: 83
• Program Memory Size: 128KB (128K x 8)
• Program Memory Type: FLASH
• EEPROM Size: 4K x 8
• RAM Size: 16K x 8
• Voltage Supply: 1.8V ~ 3.6V
• Data Converters: A/D 24x12b; D/A 2x12b
• Operating Temperature: -40°C ~ 85°C (TA)
• Mounting Type: Surface Mount
• Supplier Device Package: 100-UFBGA (7x7)
• Package / Case: 100-UFBGA

• Ultra-low-power platform
  • 1.65 V to 3.6 V power supply
  • -40°C to 85°C/105°C temperature range
  • 0.3 µA Standby mode (3 wakeup pins)
  • 0.9 µA Standby mode + RTC
  • 0.57 µA Stop mode (16 wakeup lines)
  • 1.2 µA Stop mode + RTC
  • 9 µA Low-power run mode
  • 214 µA/MHz Run mode
  • 10 nA ultra-low I/O leakage
  • < 8 µs wakeup time
• Core: ARM® Cortex®-M3 32-bit CPU
  • From 32 kHz up to 32 MHz max
  • 1.25 DMIPS/MHz (Dhrystone 2.1)
  • Memory protection unit
• Reset and supply management
• Multiple clock sources
• Pre-programmed bootloader with USART support
• Development support with serial wire debug, JTAG and trace
• Up to 83 fast I/Os (73 I/Os 5V tolerant)
• Comprehensive memory options
• LCD Driver for up to 8x40 segments
• Rich analog peripherals (down to 1.8 V)
• DMA controller with 7 channels
• 8 peripheral communication interfaces
• 10 timers including watchdog timers
• Up to 20 capacitive sensing channels
