STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory

STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory
STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory
STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory

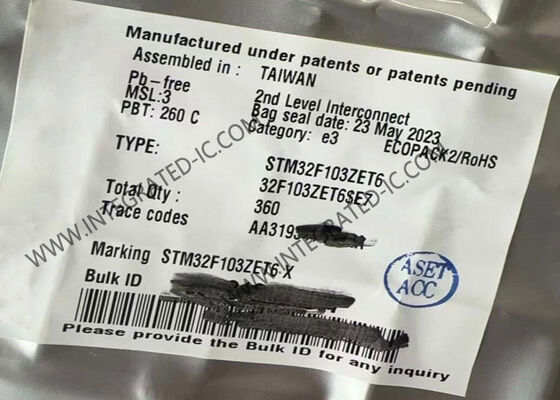

Large Image :  STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STM32F103ZET6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-144
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

STM32F103ZET6 32-Bit Microcontroller with ARM Cortex-M3 Core, 72MHz Speed, 112 I/O, and 512KB Flash Memory

Description
Part Number: STM32F103ZET6 Core Size: 32-Bit
Speed: 72MHz Core Processor: ARM® Cortex®-M3
Number Of I/O: 112 Voltage - Supply (Vcc/Vdd): 2V ~ 3.6V

STM32F103ZET6 Microcontroller MCU 32-Bit 72MHz ARM Cortex-M3 Microcontroller

STM32F103ZET6 performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.

Specifications
Core ARM Cortex M3
Program Memory Size 512 kB
Data Bus Width 32 bit
ADC Resolution 12 bit
Maximum Clock Frequency 72 MHz
Number of I/Os 112 I/O
Data RAM Size 64 kB
Supply Voltage - Min 2 V
Supply Voltage - Max 3.6 V
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Data RAM Type SRAM
Interface Type CAN, I2C, SPI, USART, USB
Moisture Sensitive Yes
Number of ADC Channels 16 Channel
Number of Timers/Counters 8 Timer
Key Features
  • Core: ARM® 32-bit Cortex®-M3 CPU
  • 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
  • Single-cycle multiplication and hardware division
  • Memories: 256 to 512 Kbytes of Flash memory, up to 64 Kbytes of SRAM
  • Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
  • LCD parallel interface, 8080/6800 modes
  • Clock, reset and supply management: 2.0 to 3.6 V application supply and I/Os
  • Low power: Sleep, Stop and Standby modes
  • 3 * 12-bit, 1 μs A/D converters (up to 21 channels)
  • 2 * 12-bit D/A converters
  • DMA: 12-channel DMA controller
  • Debug mode: Serial wire debug (SWD) & JTAG interfaces
  • Up to 112 fast I/O ports, 51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
  • Up to 11 timers including motor control PWM timers with dead-time generation
  • Up to 13 communication interfaces including USB 2.0 full speed interface and SDIO interface
Applications
  • Industrial
  • Medical
  • Consumer goods
Frequently Asked Questions
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
