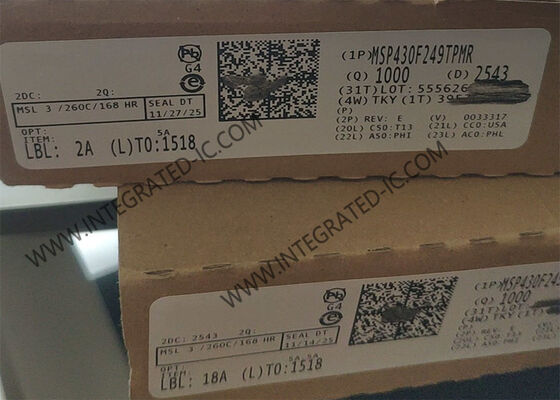

MSP430F249TPMR 16-bit Microcontroller MCU with 16MHz Speed, Ultra-Low Power and 60KB Flash Memory

MSP430F249TPMR 16-bit Microcontroller MCU with 16MHz Speed, Ultra-Low Power and 60KB Flash Memory
MSP430F249TPMR 16-bit Microcontroller MCU with 16MHz Speed, Ultra-Low Power and 60KB Flash Memory

Large Image :  MSP430F249TPMR 16-bit Microcontroller MCU with 16MHz Speed, Ultra-Low Power and 60KB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MSP430F249TPMR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MSP430F249TPMR 16-bit Microcontroller MCU with 16MHz Speed, Ultra-Low Power and 60KB Flash Memory

Description
Part Number: MSP430F249TPMR Core Processor: MSP430 CPU16
Core Size: 16-Bit Speed: 16MHz
Number Of I/O: 48 Program Memory Size: 60KB (60K X 8 + 256B)

MSP430F249TPMR Microcontroller MCU 16MHz 16-Bit Mixed Signal Microcontroller LQFP-64
Product Overview

The MSP430F249TPMR is a 16-bit ultra-low-power mixed-signal microcontroller featuring 60KB of Flash program memory, 2KB of SRAM, a 12-bit SAR ADC, two 16-bit timers, an on-chip comparator and four general-purpose serial communication interfaces (USCI: UART/I²C/SPI). Housed in a 64-pin LQFP (10×10mm) package with an operating temperature range of −40°C to +105°C, it is ideal for industrial control, portable instrumentation and battery-powered embedded systems.

Technical Specifications
Product Category 16-bit Microcontrollers - MCU
Program Memory Size 60 kB
Data RAM Size 2 kB
Package / Case LQFP-64
Maximum Clock Frequency 16 MHz
ADC Resolution 12 bit
Number of I/Os 48 I/O
Supply Voltage - Min 1.8 V
Supply Voltage - Max 3.6 V
Mounting Style SMD/SMT
Data Bus Width 16 bit
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +105 ℃
Number of ADC Channels 8 Channel
Number of Timers/Counters 3 Timer
Key Features
  • Low Supply-Voltage Range, 1.8 V to 3.6 V
  • Ultra-Low Power Consumption
  • Active Mode: 270 µA at 1 MHz, 2.2 V
  • Standby Mode (VLO): 0.3 µA
  • Off Mode (RAM Retention): 0.1 µA
  • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
  • Basic Clock Module Configurations
  • 12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature
  • 16-Bit Timer_A With Three Capture/Compare Registers
  • 16-Bit Timer_B With Seven Capture/Compare With Shadow Registers
  • Four Universal Serial Communication Interfaces (USCI)
  • On-Chip Comparator
  • Supply Voltage Supervisor/Monitor With Programmable Level Detection
  • Brownout Detector
  • Bootstrap Loader
  • Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
Related Components in Stock
Part Number Package
STGWA19NC60HD TO-247
STGWA30M65DF2 TO-247
ADS1235IRHBR 32-VQFN
AD7980BRMZRL7 10-TFSOP
ACS70331EESATR-2P5B3 12-QFN
ACS71240KEXBLT-010B3 12-QFN
TLI4971A075T5E0001 PG-TISON-8
ACS780LLRTR-050B-T 7-PSOF
ACS781LLRTR-100U-T 7-PSOF
ACS780LLRTR-100B-T 7-PSOF
ACS781LLRTR-050B-T 7-PSOF
ACS780LLRTR-050U-T 7-PSOF
ACS780LLRTR-100U-T 7-PSOF
MLX91208LDC-CAL-000-TU 8-SOIC
ACS772KCB-150B-PFF-T 5-CB MODULE
ACS772LCB-100U-PFF-T 5-CB MODULE
ACS772ECB-400B-PFF-T 5-CB MODULE
ACS756SCB-050B-PFF-T 5-CB MODULE
ACS759ECB-200B-PFF-T 5-CB MODULE
ACS770KCB-150B-PFF-T 5-CB MODULE
ACS759LCB-100B-PFF-T 5-CB MODULE
ACS770LCB-100B-PFF-T 5-CB MODULE
ACS758ECB-200B-PFF-T 5-CB MODULE
ACS758LCB-050B-PFF-T 5-CB MODULE
ACS759LCB-050B-PFF-T 5-CB MODULE
ACS758LCB-100U-PFF-T 5-CB MODULE
ACS758ECB-200U-PFF-T 5-CB MODULE
ACS758KCB-150U-PFF-T 5-CB MODULE
TMCS1108A4UQDR 8-SOIC
TMCS1108A1BQDRQ1 8-SOIC
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
