STM32L4R5QII6P Microcontroller MCU with 120MHz Speed, 32-Bit ARM Cortex-M4 Core, and 2MB Flash Memory

STM32L4R5QII6P Microcontroller MCU with 120MHz Speed, 32-Bit ARM Cortex-M4 Core, and 2MB Flash Memory
STM32L4R5QII6P Microcontroller MCU with 120MHz Speed, 32-Bit ARM Cortex-M4 Core, and 2MB Flash Memory

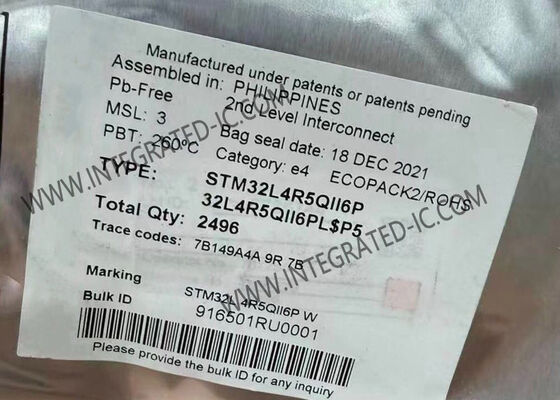

Large Image :  STM32L4R5QII6P Microcontroller MCU with 120MHz Speed, 32-Bit ARM Cortex-M4 Core, and 2MB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STM32L4R5QII6P
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

STM32L4R5QII6P Microcontroller MCU with 120MHz Speed, 32-Bit ARM Cortex-M4 Core, and 2MB Flash Memory

Description
Part Number: STM32L4R5QII6P Core Processor: ARM® Cortex®-M4
Core Size: 32-Bit Speed: 120MHz
Number Of I/O: 110 Program Memory Size: 2MB (2M X 8)

STM32L4R5QII6P Microcontroller MCU 120MHz 32-Bit ARM Cortex-M4 Microcontroller IC UFBGA132

The STM32L4R5QII6P is an ultra-low-power microcontroller from the STM32L4+ Series, based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 120 MHz frequency.

This microcontroller features high-speed memories including 2 MB of Flash memory and 640 KB of SRAM, a flexible external memory controller (FSMC) for static memories, two OctoSPI Flash memory interfaces, and an extensive range of enhanced I/Os and peripherals connected to multiple bus systems.

Specifications
Mounting Style SMD/SMT
Package / Case UFBGA-132
Core ARM Cortex M4
Program Memory Size 2 MB
Data Bus Width 32 bit
ADC Resolution 12 bit
Maximum Clock Frequency 120 MHz
Number of I/Os 108 I/O
Data RAM Size 640 kB
Supply Voltage - Min 1.14 V
Supply Voltage - Max 1.4 V
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +85 ℃
Analog Supply Voltage 1.62 V to 3.6 V, 1.8 V to 3.6 V
DAC Resolution 12 bit
Data RAM Type SRAM
I/O Voltage 1.08 V to 3.6 V
Interface Type CAN, I2C, LPUART, SAI, SPI, UART, USART, USB OTG FS
Number of ADC Channels 16 Channel
Number of Timers/Counters 16 Timer
Key Features
  • Ultra-low-power with FlexPowerControl
  • 1.71 V to 3.6 V power supply
  • -40 °C to 85/125 °C temperature range
  • Batch acquisition mode (BAM)
  • 305 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
  • 33 nA Shutdown mode (5 wakeup pins)
  • 125 nA Standby mode (5 wakeup pins)
  • 420 nA Standby mode with RTC
  • 2.8 μA Stop 2 with RTC
  • 110 μA/MHz Run mode (LDO mode)
  • 43 μA/MHz Run mode (@ 3.3 V SMPS mode)
  • 5 µs wakeup from Stop mode
  • Brownout reset (BOR) in all modes except shutdown
  • Interconnect matrix
  • Arm® 32-bit Cortex®-M4 CPU with FPU, adaptive real-time accelerator (ART Accelerator)
  • 0-wait-state execution from Flash memory
  • Frequency up to 120 MHz, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
  • DSP instructions
  • Performance benchmark: 1.25 DMIPS/MHz (Drystone 2.1), 409.20 Coremark® (3.41 Coremark/MHz @120 MHz)
  • Energy benchmark: 233 ULPMark™CP score, 56.5 ULPMark™PP score
  • Multiple clock sources including crystal oscillators and internal RC oscillators
  • 3 PLLs for system clock, USB, audio, ADC
  • 2-Mbyte Flash with 2 banks read-while-write and proprietary code readout protection
  • 640 Kbytes of SRAM including 64 Kbytes with hardware parity check
  • External memory interface for static memories
  • 2 x OctoSPI memory interface
  • 4x digital filters for sigma delta modulator
