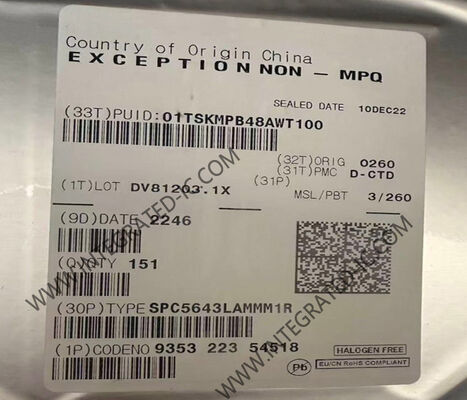

SPC5643LAMMM1R 32-Bit Dual-Core 120MHz Qorivva Microcontroller with 1MB Flash Memory

SPC5643LAMMM1R 32-Bit Dual-Core 120MHz Qorivva Microcontroller with 1MB Flash Memory
SPC5643LAMMM1R 32-Bit Dual-Core 120MHz Qorivva Microcontroller with 1MB Flash Memory

Large Image :  SPC5643LAMMM1R 32-Bit Dual-Core 120MHz Qorivva Microcontroller with 1MB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SPC5643LAMMM1R
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFBGA-257
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

SPC5643LAMMM1R 32-Bit Dual-Core 120MHz Qorivva Microcontroller with 1MB Flash Memory

Description
Part Number: SPC5643LAMMM1R Core Processor: E200z4d
Core Size: 32-Bit Dual-Core Speed: 120MHz
Program Memory Size: 1MB (1M X 8) RAM Size: 128K X 8

SPC5643LAMMM1R Microcontroller MCU 32-Bit Dual-Core 120MHz Qorivva Microcontroller

SPC5643LAMMM1R Microcontroller MCU 32-Bit Dual-Core 120MHz Qorivva Microcontroller

SPC5643LAMMM1R microcontrollers are system-on-chip devices built on Power Architecture technology. These devices contain enhancements that improve the architecture's fit in embedded applications, including additional instruction support for digital signal processing (DSP) and integrated technologies such as an enhanced time processor unit, enhanced queued analog-to-digital converter, Controller Area Network, and an enhanced modular input/output system.

Technical Specifications
Core: e200z4d
Program Memory Size: 1 MB
Data RAM Size: 128 kB
Data Bus Width: 32 bit
ADC Resolution: 12 bit
Supply Voltage - Min: 3 V
Supply Voltage - Max: 3.6 V
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +125 °C
Analog Supply Voltage: 4.5 V to 5.5 V
Data RAM Type: SRAM
Data ROM Type: EEPROM
Interface Type: CAN, GPIO, SPI, UART
Number of ADC Channels: 32 Channel
Number of Timers/Counters: 3 Timer
Operating Supply Voltage: 3.3 V
Key Features
  • High-performance e200z4d dual core
    • 32-bit Power Architecture® technology CPU
    • Core frequency as high as 120 MHz
    • Dual issue five-stage pipeline core
    • Variable Length Encoding (VLE)
    • Memory Management Unit (MMU)
    • 4 KB instruction cache with error detection code
    • Signal processing engine (SPE)
  • Memory available
    • 1 MB flash memory with ECC
    • 128 KB on-chip SRAM with ECC
    • Built-in RWW capabilities for EEPROM emulation
  • SIL3/ASILD innovative safety concept: LockStep mode and Fail-safe protection
    • Sphere of replication (SoR) for key components (CPU core, eDMA, crossbar switch)
    • Fault collection and control unit (FCCU)
    • Redundancy control and checker unit (RCCU) on outputs of the SoR connected to FCCU
    • Boot-time Built-In Self-Test for Memory (MBIST) and Logic (LBIST) triggered by hardware
    • Boot-time Built-In Self-Test for ADC and flash memory triggered by software
    • Replicated safety enhanced watchdog
    • Replicated junction temperature sensor
    • Non-maskable interrupt (NMI)
    • 16-region memory protection unit (MPU)
    • Clock monitoring units (CMU)
    • Power management unit (PMU)
    • Cyclic redundancy check (CRC) unit
  • Decoupled Parallel mode for high-performance use of replicated cores
  • Nexus Class 3+ interface
  • Interrupts
    • Replicated 16-priority controller
    • Replicated 16-channel eDMA controller
  • GPIOs individually programmable as input, output or special function
  • Three 6-channel general-purpose eTimer units
  • 2 FlexPWM units with four 16-bit channels per module
  • Communications interfaces
    • 2 LINFlexD channels
    • 3 DSPI channels with automatic chip select generation
    • 2 FlexCAN interfaces (2.0B Active) with 32 message objects
    • FlexRay module (V2.1 Rev. A) with 2 channels, 64 message buffers and data rates up to 10 Mbit/s
  • Two 12-bit analog-to-digital converters (ADCs) with 16 input channels
  • Programmable cross triggering unit (CTU) to synchronize ADCs conversion with timer and PWM
  • Sine wave generator (D/A with low pass filter)
  • On-chip CAN/UART bootstrap loader
  • Single 3.0 V to 3.6 V voltage supply
  • Ambient temperature range -40 °C to 125 °C
  • Junction temperature range -40 °C to 150 °C
