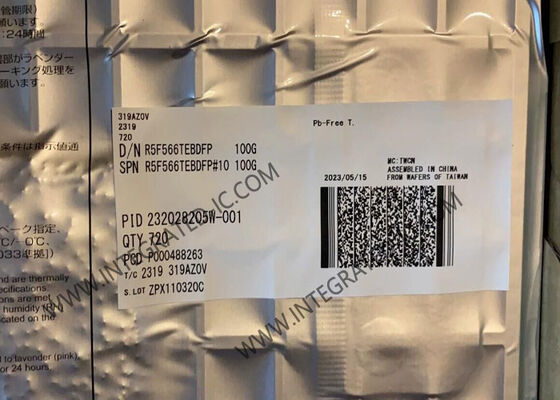

R5F566TEBDFP RX66T Microcontroller MCU with 160MHz Speed 32-Bit RXv3 Core for Motor Control

R5F566TEBDFP is a 32-bit microcontroller (MCU) from the RX66T series, designed specifically for motor control applications. Its RXv3 CPU core, operating at up to 160 MHz, can simultaneously control up to four inverters and provides advanced safety and protection features for inverter control applications.

• 160MHz RXv3 core (6.01 CoreMark/MHz), single-precision FPU
• Wide operating voltage range: 2.7V to 5.5V
• Operating temperature: -40°C to 85°C or -40°C to 105°C
• Large-capacity memory: 1MB code flash, 128KB SRAM
• 32KB data flash that can store data like an EEPROM
• Diverse package lineup from 48 to 144 pins
• Up to 110 general-purpose I/O ports
• USB 2.0 Host/Function/OTG (supports full speed (12Mbps), low speed (1.5Mbps), and isochronous transfer)
• CAN (ISO 11898-1 compliant, up to 1Mbps transfer)
• Various other communication interfaces (SCI, IIC, RSPI, etc.)
• 160MHz PWM with multiple channel configurations
• 4-channel high-resolution PWM with timing adjustment down to 195ps (picoseconds)
• 12-bit A/D converter x 3 units, 12-bit D/A converter x 2 channels
• 6 channels of comparator and 6 channels of pseudo-differential PGA
• Trusted Secure IP Lite enables high level of Root of Trust
• AES and other encryption engines, key management, flash memory protection

• Integrated Washer-Dryer System with PFC
• Ki Wireless Power Transceiver System (Tx)
• Smart HVAC Control with Integrated Slave Actuator
• 3KW Off-Board Electric Vehicle Charger
• Smart Solar Tracking and Cleaning System

Yes, all products are original, new original import is our purpose.

We are ISO 9001:2015 Certified Company and member of ERAI.

Yes, we support sample order and small order. Sample cost is different according to your order or project.

We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
