MSPM0L1304TDGS20R 32-Bit MCU with ARM Cortex-M0+ Core 32MHz Ultra-Low-Power Mixed-Signal Microcontroller

MSPM0L1304TDGS20R 32-Bit MCU with ARM Cortex-M0+ Core 32MHz Ultra-Low-Power Mixed-Signal Microcontroller
MSPM0L1304TDGS20R 32-Bit MCU with ARM Cortex-M0+ Core 32MHz Ultra-Low-Power Mixed-Signal Microcontroller

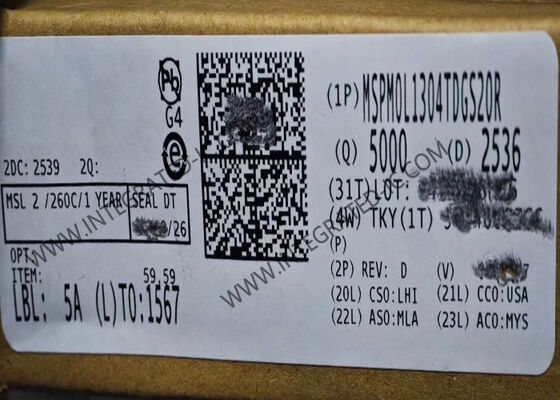

Large Image :  MSPM0L1304TDGS20R 32-Bit MCU with ARM Cortex-M0+ Core 32MHz Ultra-Low-Power Mixed-Signal Microcontroller

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MSPM0L1304TDGS20R
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSSOP-20
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MSPM0L1304TDGS20R 32-Bit MCU with ARM Cortex-M0+ Core 32MHz Ultra-Low-Power Mixed-Signal Microcontroller

Description
Part Number: MSPM0L1304TDGS20R Core Processor: ARM® Cortex®-M0+
Core Size: 32-Bit Speed: 32MHz
Number Of I/O: 17 Program Memory Size: 16KB (16K X 8)

MSPM0L1304TDGS20R Microcontroller MCU 32MHz 32-Bit MCU VSSOP-20 Mixed-Signal Microcontrollers
MSPM0L1304TDGS20R Microcontroller MCU 32MHz 32-Bit MCU VSSOP-20 Mixed-Signal Microcontrollers
Product Description
MSPM0L1304TDGS20R is an ultra-low-power 32-bit MSPM0 MCU based on the enhanced Arm Cortex-M0+ core platform operating at up to 32-MHz frequency. It offers high-performance analog peripheral integration, supports extended temperature ranges from -40°C to 125°C, and operates with supply voltages ranging from 1.62 V to 3.6 V.
Specifications
Product Category: ARM Microcontrollers - MCU
Mounting Style: SMD/SMT
Package / Case: VSSOP-20
Core: ARM Cortex M0+
Program Memory Size: 16 kB
Data Bus Width: 32 bit
ADC Resolution: 12 bit
Maximum Clock Frequency: 32 MHz
Number of I/Os: 17 I/O
Data RAM Size: 2 kB
Supply Voltage - Min: 1.62 V
Supply Voltage - Max: 3.6 V
Minimum Operating Temperature: -40 ℃
Maximum Operating Temperature: +105 ℃
DAC Resolution: 8 bit
Data RAM Type: SRAM
Interface Type: I2C, SPI
Number of ADC Channels: 8 Channel
Number of Timers/Counters: 4 x 16 bit
Operating Supply Voltage: 1.62 V to 3.6 V
Features
  • Core - Arm® 32-bit Cortex®-M0+ CPU, frequency up to 32 MHz
  • Operating characteristics - Extended temperature: -40°C to 125°C, Wide supply voltage range: 1.62 V to 3.6 V
  • Memories - Up to 64KB of flash, Up to 4KB of SRAM
  • High-performance analog peripherals - One 12-bit 1.68-Msps analog-to-digital converter (ADC) with up to 10 total external channels, Configurable 1.4-V or 2.5-V internal ADC voltage reference (VREF), Two zero-drift, zero-crossover chopper operational amplifiers (OPA), 0.5-µV/°C drift with chopping, 6-pA input bias current, Integrated programmable gain stage (1-32x), One general-purpose amplifier (GPAMP), One high-speed comparator (COMP) with 8-bit reference DAC, 32-ns propagation delay, Low power mode down to <1-µA, Programmable analog connections between ADC, OPAs, COMP, and DAC, Integrated temperature sensor
  • Flexible I/O features - Up to 28 GPIOs, Two 5-V-tolerant open-drain IOs with fail-safe protection
Applications
  • Battery charging and management
  • Power supplies and power delivery
  • Personal electronics
  • Building security and fire safety
  • Connected peripherals and printers
  • Grid infrastructure
  • Smart metering
  • Communication modules
  • Medical and healthcare
  • Lighting
