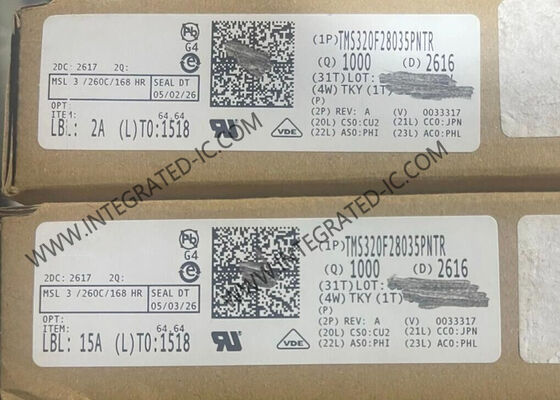

TMS320F28035PNTR 60MHz Microcontroller MCU with 128KB Program Memory and 45 I/O for Real-Time Control

TMS320F28035PNTR is a high-performance 32-bit microcontroller (MCU) from the C2000™ Piccolo™ series. It is specifically designed for real-time control applications such as industrial motor drives, digital power systems, photovoltaic inverters and electric vehicles.

• High-efficiency 32-bit CPU (TMS320C28x)
  • 60MHz (16.67ns cycle time)
  • 16 × 16 and 32 × 32 MAC operations
  • 16 × 16 dual MAC
  • Harvard bus architecture
  • Atomic operations
  • Fast interrupt response and processing
  • Unified memory programming model
  • Code-efficient (in C/C++ and Assembly)
• Programmable Control Law Accelerator (CLA)
  • 32-bit floating-point math accelerator
  • Executes code independently of the main CPU
• Endianness: Little endian
• JTAG boundary scan support
  • IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
• Low cost for both device and system:
  • Single 3.3V supply
  • No power sequencing requirement
  • Integrated power-on reset and brown-out reset
  • Low power
  • No analog support pins
• Clocking:
  • Two internal zero-pin oscillators
  • On-chip crystal oscillator and external clock input
  • Watchdog timer module
  • Missing clock detection circuitry
• Up to 45 individually programmable, multiplexed GPIO pins with input filtering
• Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
• Three 32-bit CPU timers
• Independent 16-bit timer in each Enhanced Pulse Width Modulator (ePWM)
• On-chip memory
  • Flash, SARAM, OTP, Boot ROM available
• Code-security module
• 128-bit security key and lock
  • Protects secure memory blocks
  • Prevents firmware reverse engineering
• Serial port peripherals
  • One Serial Communications Interface (SCI) Universal Asynchronous Receiver/Transmitter (UART) module
  • Two Serial Peripheral Interface (SPI) modules
  • One Inter-Integrated-Circuit (I2C) module
  • One Local Interconnect Network (LIN) module
  • One Enhanced Controller Area Network (eCAN) module
• Enhanced control peripherals
  • ePWM
  • High-Resolution PWM (HRPWM)
  • Enhanced Capture (eCAP) module
  • High-Resolution Input Capture (HRCAP) module
  • Enhanced Quadrature Encoder Pulse (eQEP) module
  • Analog-to-Digital Converter (ADC)
  • On-chip temperature sensor
  • Comparator
• Advanced emulation features
  • Analysis and breakpoint functions
  • Real-time debug through hardware

• Air conditioner outdoor unit
• Door operator drive control
• DC/DC converter
• Inverter & motor control
• On-board (OBC) & wireless charger
• Welding machine
• AC charging (pile) station
• DC charging (pile) station
• EV charging station power module
• Wireless vehicle charging module
• Energy storage power conversion system (PCS)
• Micro inverter
• Solar power optimizer
• String inverter
• AC drive control module
• Linear motor segment controller
• Servo drive power stage module
• AC-input BLDC motor drive
• DC-input BLDC motor drive
• Industrial AC-DC
• Three phase UPS
