MSP430F5638IPZR 16-Bit Microcontroller MCU with 20MHz Speed and 256KB Program Memory

MSP430F5638IPZR 16-Bit Microcontroller MCU with 20MHz Speed and 256KB Program Memory
MSP430F5638IPZR 16-Bit Microcontroller MCU with 20MHz Speed and 256KB Program Memory

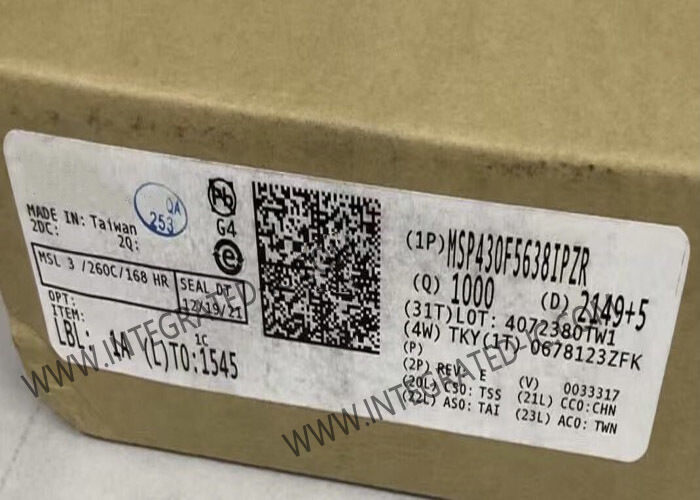

Large Image :  MSP430F5638IPZR 16-Bit Microcontroller MCU with 20MHz Speed and 256KB Program Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MSP430F5638IPZR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-100
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MSP430F5638IPZR 16-Bit Microcontroller MCU with 20MHz Speed and 256KB Program Memory

Description
Part Number: MSP430F5638IPZR Core Size: 16-Bit
Speed: 20MHz Number Of I/O: 74
Program Memory Size: 256KB (256K X 8) Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
Highlight:

20MHz Microcontroller MCU

,

16-Bit Microcontroller

,

256KB Program Memory MSP430F5638IPZR

MSP430F5638IPZR Microcontroller MCU 20MHz 16-Bit Mixed-Signal Microcontrollers LQFP-100
MSP430F5638 Microcontroller MCU 20MHz 16-Bit Mixed-Signal Microcontrollers LQFP-100
Product Description Of MSP430F5638
MSP430F5638 is 16-Bit microcontrollers with a high-performance 12-bit ADC, a comparator, two USCIs, USB 2.0, a hardware multiplier, DMA, four 16-bit timers, an RTC module with alarm capabilities, and up to 74 I/O pins.
Specifications Of MSP430F5638
Product Category: 16-bit Microcontrollers - MCU
Program Memory Size: 256 kB
Data RAM Size: 16 kB
Package / Case: LQFP-100
Maximum Clock Frequency: 20 MHz
ADC Resolution: 12 bit
Number of I/Os: 74 I/O
Supply Voltage - Min: 1.8 V
Supply Voltage - Max: 3.6 V
Mounting Style: SMD/SMT
Data Bus Width: 16 bit
Minimum Operating Temperature: -40 ℃
Maximum Operating Temperature: +85 ℃
Data RAM Type: SRAM
Interface Type: I2C, SPI, UART
Key Features Of MSP430F5638
  • Low supply voltage range: 1.8 V to 3.6 V
  • Ultra-low power consumption
    • Active mode (AM): 270 µA/MHz at 8 MHz, 3.0 V, flash program execution (typical)
    • Standby mode (LPM3): 1.8 µA at 2.2 V, 2.1 µA at 3.0 V (typical)
    • Shutdown real-time clock (RTC) mode (LPM3.5): 1.1 µA at 3.0 V (typical)
    • Shutdown mode (LPM4.5): 0.3 µA at 3.0 V (typical)
  • Wake up from standby mode in 3 µs (typical)
  • 16-bit RISC architecture, extended memory, up to 20-MHz system clock
  • Flexible power-management system
  • Unified clock system
  • Four 16-bit timers with 3, 5, or 7 capture/compare registers
  • Two universal serial communication interfaces (USCIs)
  • 12-bit analog-to-digital converter (ADC) with internal shared reference, sample-and hold, and autoscan feature
  • Dual 12-bit digital-to-analog converters (DACs) with synchronization
  • Voltage comparator
  • Hardware multiplier supports 32-bit operations
  • Serial onboard programming, no external programming voltage needed
  • 6-channel internal DMA
Applications Of MSP430F5638
  • Analog and digital sensor systems
  • Digital motor control
  • Remote controls
  • Thermostats
  • Digital timers
  • Hand-held meters
