PIC16F18323-I/ST Microcontroller MCU 8-Bit 32MHz with 14-TSSOP Package

PIC16F18323-I/ST Microcontroller MCU 8-Bit 32MHz with 14-TSSOP Package
PIC16F18323-I/ST Microcontroller MCU 8-Bit 32MHz with 14-TSSOP Package

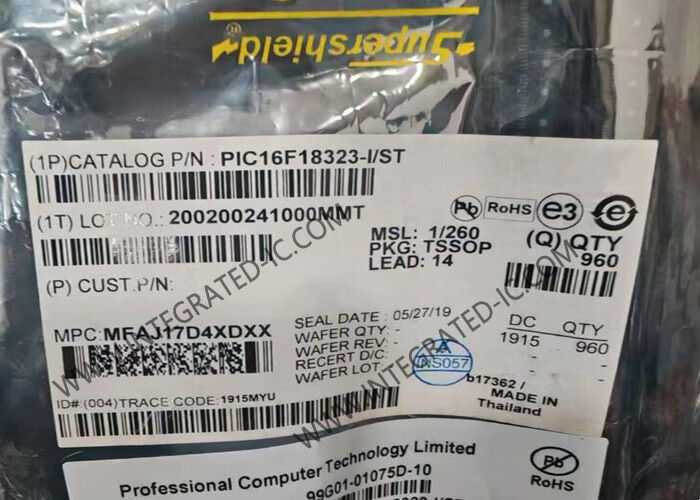

Large Image :  PIC16F18323-I/ST Microcontroller MCU 8-Bit 32MHz with 14-TSSOP Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PIC16F18323-I/ST
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 14-TSSOP
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

PIC16F18323-I/ST Microcontroller MCU 8-Bit 32MHz with 14-TSSOP Package

Description
Part Number: PIC16F18323-I/ST Core Processor: PIC
Core Size: 8-Bit Speed: 32MHz
Number Of I/O: 12 Voltage - Supply (Vcc/Vdd): 2.3V ~ 5.5V
Highlight:

32MHz Microcontroller MCU

,

8-Bit PIC16F18323-I/ST

,

14-TSSOP Package Microcontroller

PIC16F18323-I/ST Microcontroller MCU 8-Bit 32MHz PIC XLP™ 16F Microcontroller In 14-TSSOP Package
Product Overview Of PIC16F18323

PIC16F18323 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications. The Peripheral Pin Select (PPS) functionality enables pin mapping when using the digital peripherals (CLC, CWG, CCP and PWM) to add flexibility to the application design.

Specifications Of PIC16F18323
Core: PIC16
Program Memory Size: 3.5 kB
Data RAM Size: 256 B
Package/Case: TSSOP-14
Maximum Clock Frequency: 32 MHz
ADC Resolution: 10 bit
Number of I/Os: 12 I/O
Supply Voltage - Min: 2.3 V
Supply Voltage - Max: 5.5 V
Data Bus Width: 8 bit
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +85 °C
Features Of PIC16F18323
  • Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
  • Flash Program Memory with self read/write capability
  • 256B EEPROM
  • IDLE and DOZE low power modes
  • Peripheral Module Disable (PMD)
  • Peripheral Pin Select (PPS)
  • 2x 10-bit PWMs
  • 2x Capture, Compare, PWM (CCP)
  • Complementary Waveform Generator (CWG)
  • Numerically Controlled Oscillator (NCO)
  • 2x Configurable Logic Controller (CLC)
  • 11 Channel 10-bit ADC with Voltage Reference
  • 5-bit Digital to Analog Converter (DAC)
  • 2x Comparators
  • 2x 8-bit Timers (TMR0/TMR2)
  • 1x 16-bit Timer (TMR1)
  • Extended Watchdog Timer (WDT)
  • Enhanced Power-On/Off-Reset
  • Low-Power Brown-Out Reset (LPBOR)
  • Programmable Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
