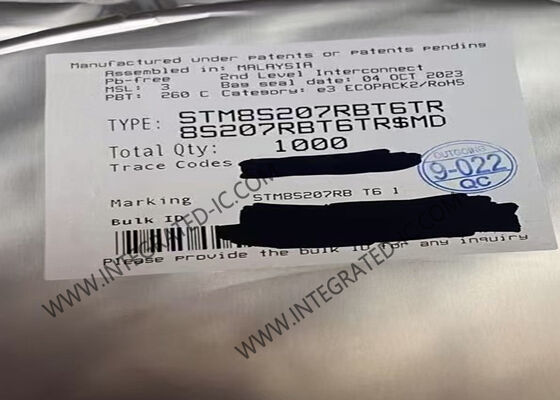

STM8S207RBT6TR Microcontroller MCU High-Performance 8-Bit 24MHz with 128KB Flash and 52 I/O in 64-LQFP Package

STM8S207 performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash program memory. These devices provide reduced system cost, performance robustness, short development cycles, and product longevity.

• Core: Max fCPU: up to 24 MHz, 0 wait states @ fCPU≤ 16 MHz; Advanced STM8 core with Harvard architecture and 3-stage pipeline; Extended instruction set; Max 20 MIPS @ 24 MHz
• Memories: Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles; Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles; RAM: up to 6 Kbytes
• Clock, Reset and Supply Management: 2.95 to 5.5 V operating voltage; Low power crystal resonator oscillator; External clock input; Internal, user-trimmable 16 MHz RC; Internal low power 128 kHz RC; Clock security system with clock monitor
• Low Power Modes: Wait, active-halt, & halt low power modes; Peripheral clocks switched off individually; Permanently active, low consumption power-on and power-down reset
• Interrupt Management: Nested interrupt controller with 32 interrupts; Up to 37 external interrupts on 6 vectors
• Timers: 2x 16-bit general purpose timers; Advanced control timer: 16-bit, 4 CAPCOM channels; 8-bit basic timer with 8-bit prescaler; Auto wakeup timer; Window watchdog, independent watchdog
• Communications Interfaces: High speed 1 Mbit/s active beCAN 2.0B; UART with clock output; SPI interface up to 10 Mbit/s; I2C interface up to 400 Kbit/s
• I/Os: Up to 68 I/Os on an 80-pin package including 18 high sink outputs; Highly robust I/O design, immune against current injection
• Development Support: Single wire interface module (SWIM) and debug module (DM)

• Home appliances
• HVAC
• User interfaces
• Factory automation
• Motor control
• Sensors
• Lighting
• Personal care
• Power tools
• E-bikes
• Circuit breakers
• Rechargeable battery-operated devices
• Toys and game accessories
• Power supplies and power management
