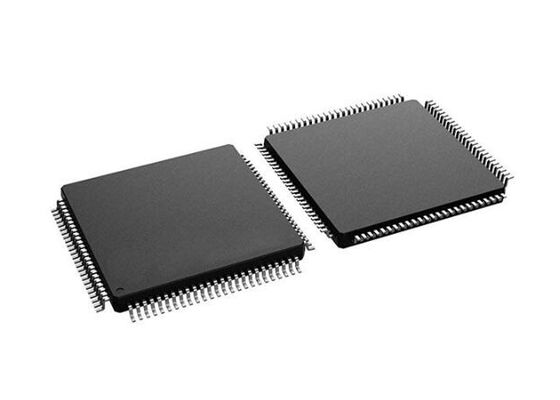

F280049CPZS 32-Bit Real-Time Microcontroller MCU with 100MHz Speed, 256KB Flash Memory, and 40 I/O Pins

F280049CPZS 32-Bit Real-Time Microcontroller MCU with 100MHz Speed, 256KB Flash Memory, and 40 I/O Pins
F280049CPZS 32-Bit Real-Time Microcontroller MCU with 100MHz Speed, 256KB Flash Memory, and 40 I/O Pins F280049CPZS 32-Bit Real-Time Microcontroller MCU with 100MHz Speed, 256KB Flash Memory, and 40 I/O Pins

Large Image :  F280049CPZS 32-Bit Real-Time Microcontroller MCU with 100MHz Speed, 256KB Flash Memory, and 40 I/O Pins

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: F280049CPZS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-100
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

F280049CPZS 32-Bit Real-Time Microcontroller MCU with 100MHz Speed, 256KB Flash Memory, and 40 I/O Pins

Description
Part Number: F280049CPZS Core Processor: C28x
Core Size: 32-Bit Speed: 100MHz
Number Of I/O: 40 Program Memory Size: 256KB (256K X 8)
Highlight:

100MHz Microcontroller MCU

,

256KB Flash Memory Microcontroller MCU

,

40 I/O Pins Microcontroller MCU

F280049 Microcontroller MCU C2000 C28x Piccolo Microcontroller IC 32-Bit Real-Time Microcontrollers
Product Overview Of F280049
F280049 is a powerful 32-bit floating-point microcontroller unit (MCU) that enables designers to integrate crucial control peripherals, differentiated analog, and nonvolatile memory on a single device.
Specifications Of F280049
Product Category32-bit Microcontrollers - MCU
Mounting StyleSMD/SMT
Package / CaseLQFP-100
CoreC28x
Program Memory Size256 kB
Data RAM Size100 kB
Data Bus Width32 bit
ADC Resolution3 x 12 bit
Maximum Clock Frequency100 MHz
Number of I/Os40 I/O
Supply Voltage - Min1.14 V
Supply Voltage - Max1.32 V
Minimum Operating Temperature-40℃
Maximum Operating Temperature+125℃
Analog Supply Voltage3.3 V
DAC Resolution12 bit
Data RAM TypeRAM
I/O Voltage3.3 V
Interface TypeCAN, I2C, SPI, UART
Key Features Of F280049
  • TMS320C28x 32-bit CPU
  • 100MHz operation
  • IEEE 754 single-precision Floating-Point Unit (FPU)
  • Trigonometric Math Unit (TMU)
  • 3×-cycle to 4×-cycle improvement for common trigonometric functions versus software libraries
  • 13-cycle Park transform
  • Viterbi/Complex Math Unit (VCU-I)
  • Ten hardware breakpoints (with ERAD)
  • Programmable Control Law Accelerator (CLA)
  • 100MHz operation
  • IEEE 754 single-precision floating-point instructions
  • Executes code independently of main CPU
  • On-chip memory: 256KB (128KW) of flash (ECC-protected) across two independent banks
  • 100KB (50KW) of RAM (ECC-protected or parity-protected)
  • Dual-zone security supporting third-party development
  • Unique Identification (UID) number
  • Clock and system control with multiple oscillator options
  • Windowed watchdog timer module
  • Missing clock detection circuitry
  • 1.2V core, 3.3V I/O design
  • Internal VREG or DC-DC for 1.2V generation allows for single-supply designs
  • Brownout reset (BOR) circuit
  • 6-channel Direct Memory Access (DMA) controller
  • 40 individually programmable multiplexed General-Purpose Input/Output (GPIO) pins
  • 21 digital inputs on analog pins
  • Enhanced Peripheral Interrupt Expansion (ePIE) module
  • Multiple low-power mode (LPM) support with external wakeup
  • Embedded Real-time Analysis and Diagnostic (ERAD)
Applications Of F280049
  • Medium/short range radar
  • Air conditioner outdoor unit
  • Door operator drive control
  • Automated sorting equipment
  • CNC control
  • Textile machine
  • Welding machine
  • EV charging station power module
  • Wireless vehicle charging module
  • Energy storage power conversion system (PCS)
Related Components in Stock
Part NumberPackage
LMR36500F5RPERVQFN-HR-9
LMR36500P3RPERVQFN-HR-9
LMR36500F3RPERVQFN-HR-9
LMR51420XDDCRSOT-23-THN-6
TPS542A52RJMRVQFN-HR-33
LMR23625CFDDARHSOIC-8
LMR23625CFPDRRRWSON-12
LMR23630APDRRRWSON-12
LMR23630AFDDARHSOIC-8
LMR23630ADDARHSOIC-8
LMR23630DRRRWSON-12
LMR23630FDRRRWSON-12
LMR23610ADDARHSOIC-8
LMR16020PDDARHSOIC-8
LMR16030SDDARHSOIC-8
LMR16010PDDARHSOIC-8
LMR14030SDDARHSOIC-8
LMR14020SDDARHSOIC-8
LMR14050SDDARHSOIC-8
TPS51216MRUKREPWQFN-20
TPS53317ARGBRVQFN-20
UCC27734DRSOIC-8
UCC23525CDWYRSOIC-6
LMG1020YFFRDSBGA-6
LMG1205YFXRDSBGA-12
UCC20520DWRSOIC-16
ISO5852SMDWREPSOIC-16
UCC21521CDWRSOIC-16
UCC21521ADWRSOIC-16
UCC21520ADWRSOIC-16
Product Tags
F280049CPZS F280049CPZ F280049CP F280049C F280049
Frequently Asked Questions
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
