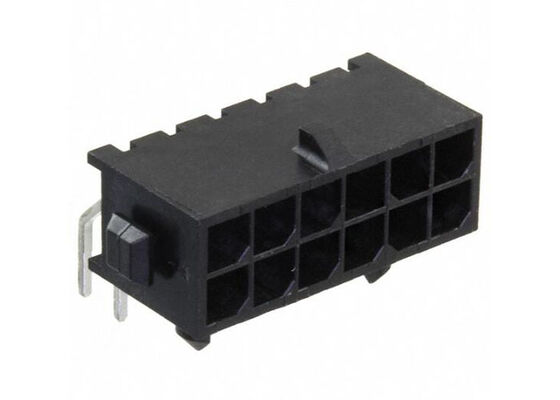

4-794619-2 12 Position 250V 5A Micro MATE-N-LOK Wire-to-Board Connector PCB Header

4-794619-2 12 Position 250V 5A Micro MATE-N-LOK Wire-to-Board Connector PCB Header
4-794619-2 12 Position 250V 5A Micro MATE-N-LOK Wire-to-Board Connector PCB Header 4-794619-2 12 Position 250V 5A Micro MATE-N-LOK Wire-to-Board Connector PCB Header

Large Image :  4-794619-2 12 Position 250V 5A Micro MATE-N-LOK Wire-to-Board Connector PCB Header

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 4-794619-2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 12POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

4-794619-2 12 Position 250V 5A Micro MATE-N-LOK Wire-to-Board Connector PCB Header

Description
Part Number: 4-794619-2 Connector System: Wire-to-Board
Number Of Positions: 12 Number Of Rows: 2 Row
Voltage Rating: 250 V Current Rating: 5 A
Highlight:

12 Position Connector

,

250V PCB Header

,

5A Wire-to-Board Connector

4-794619-2 Micro MATE-N-LOK Wire-To-Board Connectors
4-794619-2 is a Micro MATE-N-LOK Series 12 Position Wire-to-Board Connector featuring 3 mm [.118 in] centerline spacing and PCB mount header configuration.
Product Specifications
Series Micro MATE-N-LOK
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Operating Temperature -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Configuration Features
  • Number of Columns: 6
  • Connector Contact Load Condition: Fully Loaded
  • PCB Mount Orientation: Right Angle
  • Number of Positions: 12
  • Number of Rows: 2
Electrical Characteristics
  • Operating Voltage: 250VAC
  • Operating Voltage: 250VDC
Contact Features
  • Contact Base Material: Brass
  • Contact Mating Area Length: 4.15 mm [.163 in]
  • Contact Layout: Matrix
  • Contact Shape & Form: Square
  • PCB Contact Termination Area Plating Material Thickness: 2.54 - 7.62 µm [100 - 300 µin]
  • Mating Square Post Dimension: .64 mm [.025 in]
  • Contact Size: .64mm
  • PCB Contact Termination Area Plating Material Finish: Matte
  • Contact Underplating Material Thickness: 1.27 - 2.54 µm [50 - 100 µin]
  • Contact Underplating Material: Nickel
  • Contact Mating Area Plating Material: Gold (Au)
  • Contact Mating Area Plating Material Thickness: .381 µm [15 µin]
  • Contact Type: Tab
  • Contact Current Rating (Max): 5A
  • PCB Contact Termination Area Plating Material: Tin
Product Image
