10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish

10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish
10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish 10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish

Large Image :  10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 10120666-101LF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish

Description
Part Number: 10120666-101LF Number Of Positions: 16 Position
Voltage Rating: 30 V Current Rating: 500 MA
Data Rate: 6 Gb/s, 12 Gb/s Contact Finish Thickness: 30.0µin (0.76µm)
Highlight:

6 Gb/s Mini-SAS HD Connector

,

12 Gb/s SAS Storage Interface Connector

,

Gold Contact Finish 16 Position Connector

10120666-101LF Connectors 16POS Mini-SAS HD Next Generation SAS Storage Interface
The 10120666-101LF is a Mini-SAS HD next generation SAS storage interface designed to address channel bandwidth requirements of 6Gb/s, 12Gb/s and 14Gb/s, meeting or exceeding SAS 2.1 and proposed SAS 3.0 specifications. This product provides greater port density (11mm port-to-port) compared to the existing MiniSAS 2.0 product (19.01mm port-to-port).
Product Specifications
Connector Style Receptacle
Connector Type SAS, Mini HD
Number of Positions 16
Mounting Type Through Hole
Termination Press-Fit
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Key Features
IMLA based board connector ensures compliance to SAS 2.1 & proposed 3.0 electrical performance criteria
Internal and external board connector and cable assemblies provide end-to-end application solutions
1X1, 1X2 and 1X4 connector/cage assemblies offer product family design flexibility
All board connectors and configurations are fully 6G and 12G compliant, allowing use of same part numbers when system speeds increase from 6G to 12G
Metal cages on external connectors and cables provide 360° EMI shielding, replacing problematic EMC elastomeric gaskets
Cable assemblies offered in 4x and 8x configurations
Eye-of-the-needle connector and cage single step termination yields consistent application to the PCB
External cable strain relief results in axial pull force exceeding 20lbs
Cable latch design reduces cable insertion force and un-mating issues
Pull tabs available in multiple lengths in Pantone 279 color to meet various application needs
Positive stop feature on casting prevents external cable assembly mating over-travel
Hybrid external cables (mini-SAS HD to mini-SAS) allow backwards compatible cabling with legacy system hardware
Applications
Data
Servers
RAID systems
Storage racks
External storage systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)
Communications
Switches

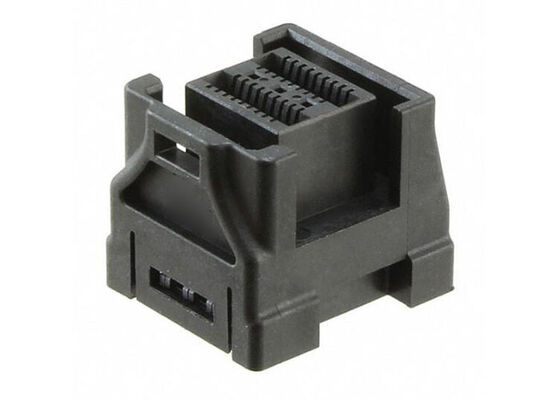

Product Image
10120666-101LF Mini-SAS HD Connector 16 Position with 6 Gb/s and 12 Gb/s Data Rates and Gold Contact Finish 0
