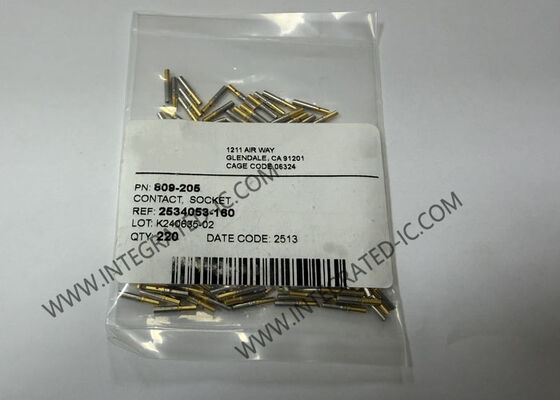

809-205 High-Density Circular MIL Spec Contacts with 7.5 A Current Rating, Gold-Plated Copper Alloy, and Weathertight Design

809-205 High-Density Circular MIL Spec Contacts with 7.5 A Current Rating, Gold-Plated Copper Alloy, and Weathertight Design
809-205 High-Density Circular MIL Spec Contacts with 7.5 A Current Rating, Gold-Plated Copper Alloy, and Weathertight Design

Large Image :  809-205 High-Density Circular MIL Spec Contacts with 7.5 A Current Rating, Gold-Plated Copper Alloy, and Weathertight Design

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 809-205
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: CONN
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

809-205 High-Density Circular MIL Spec Contacts with 7.5 A Current Rating, Gold-Plated Copper Alloy, and Weathertight Design

Description
Features: Weathertight Part Number: 809-205
Accessory Type: O-Ring Material: Aluminum
Color: Silver Current Rating: 7.5 A
Highlight:

7.5 A Current Rating Circular MIL Spec Contacts

,

Gold-Plated Copper Alloy High-Density Connectors

,

Weathertight Circular Connectors

809-205 Connectors High-Density 7.5 A Circular Mil Spec Contacts
High-density 809-205 contacts accept 20 to 24 AWG wire. At rated test current of 7.5 A, the maximum voltage drop is 55 millivolts. Contacts are gold-plated copper alloy. Socket contacts feature stainless steel hoods to protect against probe damage. Contacts are bulk packaged.
Product Specifications
Product Category Circular MIL Spec Contacts
MIL Type MIL-DTL-38999
Contact Gender Socket (Female)
Contact Size 20
Wire Gauge 25 AWG - 20 AWG
Termination Style Crimp
Contact Plating Gold
Contact Type Pin & Socket
Current Rating 7.5 A
Contact Material Beryllium Copper
Product Contacts
Product Type Circular MIL Spec Contacts
Unit Weight 0.041226 oz
