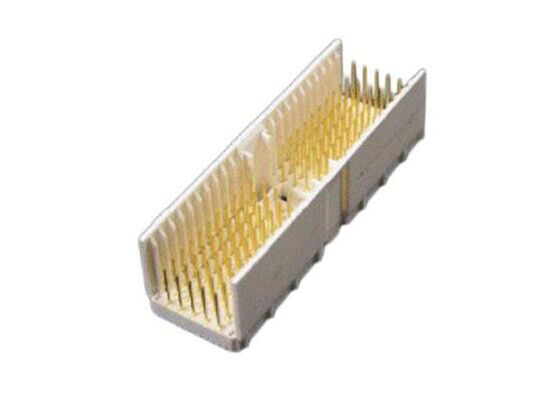

HM2P07PK5114GFLF Connectors Millipacs Back Plane Connectors 110POS Vertical Header Connectors
HM2P07PK5114GFLF is Millipacs Back Plane Connectors, 2mm Hard Metric Series, Millipacs, 5 Row Vertical Header, Type A with Peg 2.5mm, 110 Signal Pin, Press Fit Tail, 250 mating cycles-Rear Plug up and ROHS Compliant.
Millipacs is a 2mm modular, Board-to-Board Interconnection system in Hard Metric (HM) configuration that is versatile due to the cost-effectiveness, user flexibility, and availability of its broad range.
Product Specifications
| Series |
Millipacs® |
| Connector Type |
Header, Male Pins |
| Connector Style |
A 22 |
| Number of Positions |
154 (110 + 44 Ground) |
| Number of Positions Loaded |
All |
| Pitch |
0.079" (2.00mm) |
| Number of Rows |
5 + 2 |
| Mounting Type |
Through Hole |
| Termination |
Press-Fit |
| Contact Finish |
Gold |
| Contact Finish Thickness |
Flash |
| Current Rating |
1.5 A |
| Voltage Rating |
750Vrms |
| Operating Temperature |
-55°C ~ 125°C |
| Features |
Board Guide |
Key Features
- Hard Metric 2mm pitch
- Modular and scalable by 25mm to 50mm
- Three levels of mating contact lengths and different terminal lengths
- Multipurpose center, coding feature, guiding feature and location peg
- SI performance
- Different length contacts at any position
- Hybrid connectors with signal, power, and coaxial contacts
- Two outer rows
