CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector
CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

Large Image :  CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: CLE-110-01-G-DV-A-K-TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 20POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

Description
Part Number: CLE-110-01-G-DV-A-K-TR Number Of Positions: 20 Position
Pitch - Mating: 0.8 Mm (0.031 In) Number Of Rows: 2 Row
Current Rating (Amps): 2.7A Per Contact Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Highlight:

20 Position Socket Strip

,

0.80mm Pitch Connectors

,

Tiger Beam Board to Board Connector

CLE-110-01-G-DV-A-K-TR Connectors 20POS Socket 0.80mm Tiger Beam Single Beam Socket Strip
CLE-110-01-G-DV-A-K-TR is a 0.80mm Tiger Beam™ cost-effective single beam socket strip designed for reliable board-to-board connections.
Product Specifications
Specification Details
Series CLE
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 2
Row Spacing - Mating 0.047" (1.20mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.130" (3.30mm)
Operating Temperature -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide, Pick and Place
Current Rating (Amps) 2.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Contact Finish Thickness - Post 10.0µin (0.25µm)
Key Features
  • Available with cost-saving gold plating
  • Cost effective Tiger Beam™ contact system
  • Ideal for pass-through applications
  • Available up to 180 positions
Product Image

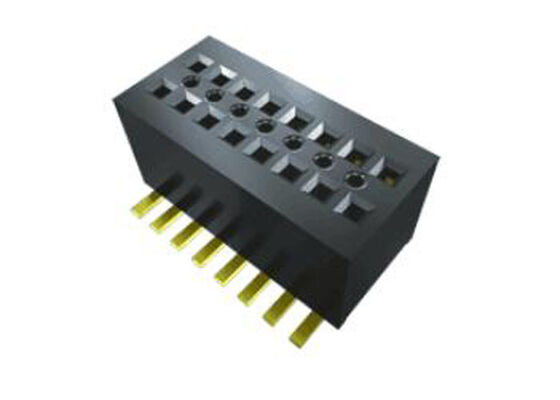

CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector 0
Related Electronic Components in Stock
Part Number Package
DSPIC33CK128MP505-E/PT 48-TQFP
DSPIC33EP256MU806-E/PT 64-TQFP
DSPIC33EV128GM006-I/PT 64-TQFP
DSPIC33CK64MP205T-I/PT 48-TQFP
DSPIC33CK64MP202-I/SS 28-SSOP
DSPIC33CK64MP206-E/PT 64-TQFP
DSPIC33EV32GM106-E/PT 64-TQFP
DSPIC33EV256GM104T-I/PT 44-TQFP
DSPIC33CK128MP506-E/PT 64-TQFP
DSPIC33EP128MC202T-I/MM 28-QFN
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
