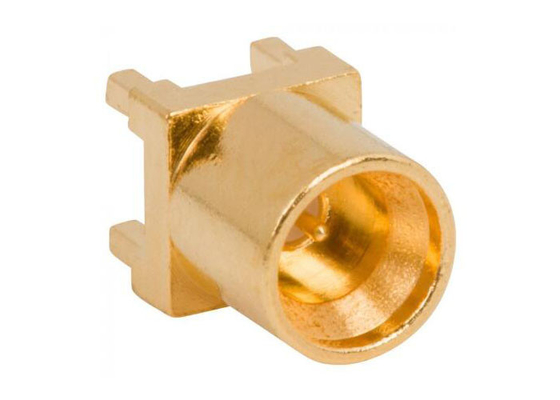

Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors

Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors
Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors
Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors

Large Image :  Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 925-202J-51P
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SMPM
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors

Description
Part Number: 925-202J-51P Connector Style: SMPM
Connector Type: Jack, Male Pin Frequency - Max: 26.5 GHz
Mounting Type: Through Hole Operating Temperature: -65°C ~ 165°C

Connectors 925-202J-51P 50Ohm RF Connector 26.5GHz SMPM Connectors



Product Description Of 925-202J-51P

925-202J-51P is 50Ohm RF Connector, SMPM Straight, PCB Full Detent Jack, Through Hole. The SMPM interface is a micro-miniature interface with a frequency range of DC to 65 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.


Specification Of 925-202J-51P

PCB Connectors
SMPM
Jack (Socket)
50 Ohms
26.5 GHz
Solder
Straight
Standard
Through Hole
Body Finish: Gold
Body Material: Brass
Contact Material: Beryllium Copper
Contact Plating: Gold
Mating Cycles: 100 Cycle
Maximum Operating Temperature: + 165℃
Minimum Operating Temperature: - 65℃


Features Of 925-202J-51P

  • Nominal impedance: 50Ω
  • Frequency range up to 40 GHz (DC – 65 GHz on Extended Range Designs)
  • Minimum board-to-board distance: 6.6 mm
  • Axial misalignment: 0.25 mm
  • Radial misalignment: 3° (Function of bullet length)
  • Different detent types: smooth bore, full detent
  • Mating cycles: Full detent: ≥ 100; Smooth Bore: ≥ 500
  • Interface dimensions per MIL-STD-348
  • High density mounting potential due to minimum pitch and board-to-board distances
  • Push/snap-on locking for fast and easy disconnection
  • Automatic and cost-effective assembly with tape and reel packaging options


Applications Of 925-202J-51P

  • Antennas
  • Broadband
  • Military
  • Instrumentation
  • Test and Measurement
  • Medical
  • Quantum Computing
  • Handheld and Portable Devices
