Product Description Of 925-143J-51P

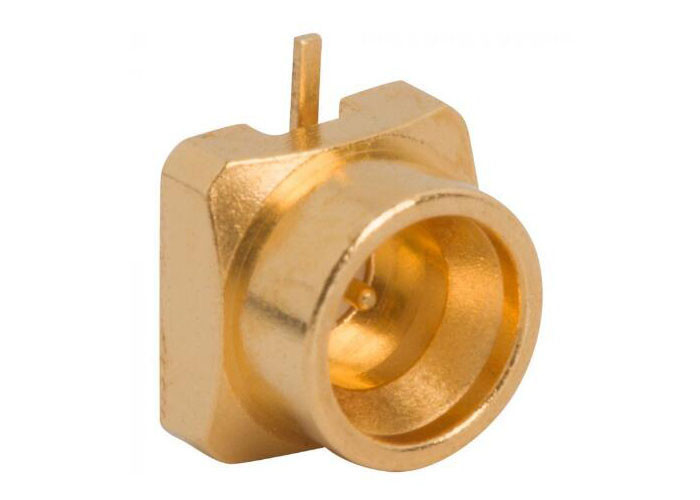

925-143J-51P: RF Connector, SMPM Straight PCB Full Detent Jack Surface Mount 50Ohm.
SMPM PCB mount connectors are available in straight and right-angle smooth bore or full detent jack configurations with surface mount (SMT) contact termination in a variety of body styles. The SMPM interface is a micro-miniature interface with a frequency range of DC to 65 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.

Specification Of 925-143J-51P

Features Of 925-143J-51P

• Nominal impedance: 50Ω
• Frequency range up to 40 GHz (DC – 65 GHz on Extended Range Designs)
• Minimum board-to-board distance: 6.6 mm
• Axial misalignment: 0.25 mm
• Radial misalignment: 3° (Function of bullet length)
• Different detent types: smooth bore, full detent
• Mating cycles: Full detent: ≥ 100; Smooth Bore: ≥ 500
• Interface dimensions per MIL-STD-348
• High density mounting potential due to minimum pitch and board-to-board distances
• Push/snap-on locking for fast and easy disconnection
• Automatic and cost-effective assembly with tape and reel packaging options
