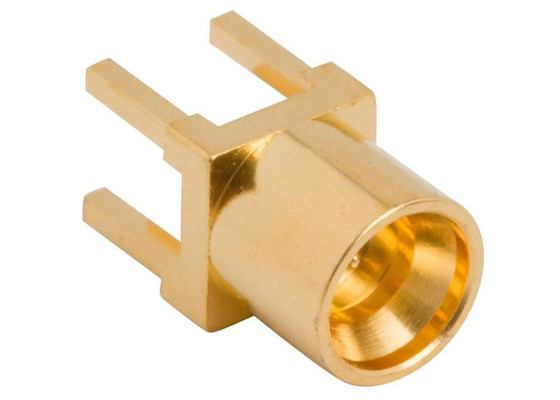

Connectors 925-138J-51P 40GHz RF Connectors 50Ohm SMPM Connector Jack

Connectors 925-138J-51P 40GHz RF Connectors 50Ohm SMPM Connector Jack​

Product Description Of 925-138J-51P

925-138J-51P: 50Ohm RF Connector, SMPM Straight PCB Full Detent Jack, Through Hole.

Features​ Of 925-138J-51P

• Nominal impedance: 50Ω
• Frequency range up to 40 GHz (DC – 65 GHz on Extended Range Designs)
• Minimum board-to-board distance: 6.6 mm
• Axial misalignment: 0.25 mm
• Radial misalignment: 3° (Function of bullet length)
• Different detent types: smooth bore, full detent
• Mating cycles: Full detent: ≥ 100; Smooth Bore: ≥ 500
• Interface dimensions per MIL-STD-348
• High density mounting potential due to minimum pitch and board-to-board distances
• Push/snap-on locking for fast and easy disconnection
• Automatic and cost-effective assembly with tape and reel packaging options

Applications Of 925-138J-51P

• Antennas
• Broadband
• Military
• Instrumentation
• Test and Measurement
• Medical
• Quantum Computing
• Handheld and Portable Devices

SMPM Interface Dimensions: Jack (full detent)
