LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications
LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

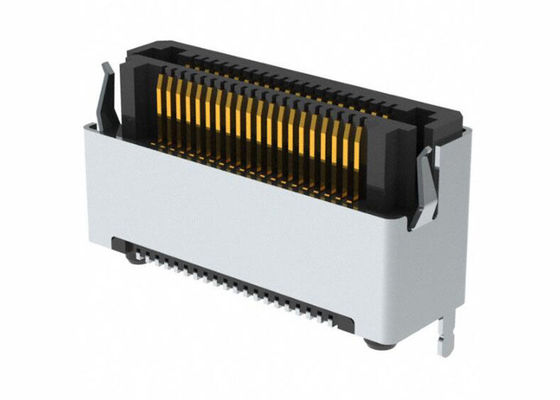

Large Image :  LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LSHM-120-06.0-F-DV-A-S-K-TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 40POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Description
Part Number: LSHM-120-06.0-F-DV-A-S-K-TR Number Of Positions: 40 Position
Pitch: 0.5 Mm (0.02 In) Current Rating: 2 A
Voltage Rating: 160 VAC Data Rate: 16 Gbps
Highlight:

0.50mm Pitch LSHM Connectors

,

40 Position Razor Beam Connectors

,

14 Gbps Hermaphroditic Connectors

LSHM-120-06.0-F-DV-A-S-K-TR Connectors 0.50mm Razor Beam LSHM Connectors 40POS
Product Description
The LSHM-120-06.0-F-DV-A-S-K-TR is a 0.50mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip with optional shielding. This high-density, rugged connector is designed for board-to-board and board-to-cable applications, featuring EMI protection options. The hermaphroditic design with Razor Beam™ fine pitch contact system saves PCB space in all axes and is rated at 14 Gbps per contact.
Specifications
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place, Shielded
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Mated Stacking Heights 8.5mm, 9mm, 10mm, 12mm
Height Above Board 0.293" (7.45mm)
Key Features
  • Shielded option for EMI protection
  • Lubricated option available
  • Up to 100 I/Os
  • Ten stack height options from 5 mm to 12 mm
  • Self-mating system reduces inventory cost
  • Parallel, perpendicular and coplanar systems
  • Current rating: 2.0 A max
  • Voltage rating: 160 VAC/226 VDC max
  • Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
  • Audible click when mated

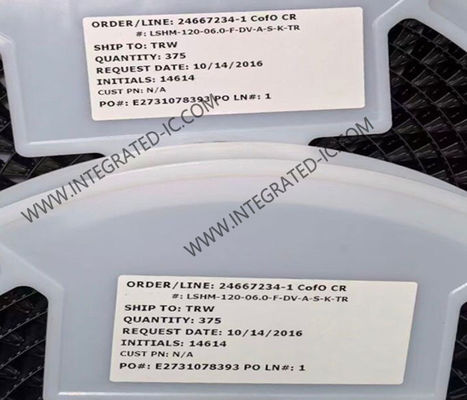

Product Image
LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications 0
