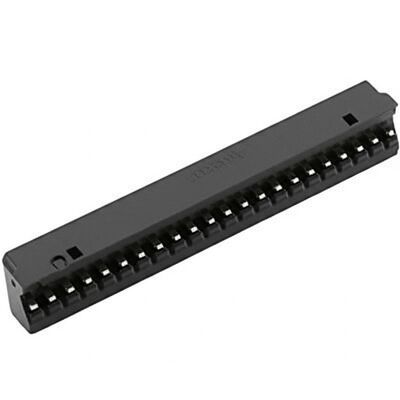

34 Position 2.54 mm Pitch Panel Mount Card Edge Connector for Wire-To-Board Applications

Large Image : 34 Position 2.54 mm Pitch Panel Mount Card Edge Connector for Wire-To-Board Applications

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	1-583861-1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	34POS
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

34 Position 2.54 mm Pitch Panel Mount Card Edge Connector for Wire-To-Board Applications

Description

Part Number:	1-583861-1	Current Rating::	5 A
Maximum Operating Temperature::	+ 105 C	Minimum Operating Temperature::	- 55 C
Unit Weight::	8.282 G	Number Of Positions::	34 Position
Highlight:	34 Position Card Edge Connector , 2.54 mm Pitch Wire-To-Board Connector , Panel Mount Connector

1-583861-1 Connectors 2.54 mm Wire-To-Board Card Edge Connector 34 Position

1-583861-1 Connectors 2.54 mm Wire-To-Board Card Edge Connector 34 Position

Product Description

1-583861-1 is a 17 dual positions, 2.54 mm centerline wire-to-board card edge connector designed for reliable electrical connections in industrial applications.

Specifications

Number of Positions	34
Card Thickness	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Pitch	0.100" (2.54mm)
Features	Flange
Mounting Type	Panel Mount
Color	Black
Flange Feature	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Material - Insulation	Polyester Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Operating Temperature	-40°C ~ 85°C
